Portable Light Steel Structure Hangar Warehouse Shed Building

Name: Portable Light Steel Structure Hangar Warehouse Shed Building
Brand: Qingdao KXD Steel Structure Co., Ltd
SKU: S-0070
Price: 65.00 USD
Availability: InStock

Product Details

Place of Origin: Qingdao, China

Brand Name: KXD

Certification: CE, ISO, SGS

Model Number: S-0070

Payment & Shipping Terms

Minimum Order Quantity: 500 square meters

Price: US$ 50-80 per square meter

Packaging Details: bulk for steel panels, steel pallet for steel structure, wooden box for small installing accessories

Delivery Time: 30-40 working days

Payment Terms: L/C,T/T

Supply Ability: 3000 tons per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Installation:	Free Installing Drawing Details & Quick On-line Technical Guide	Prefabrication:	Off-site In Workshop & Ready For Direct Installation
Connection:	High Strength Bolt Connected	Visit:	Workshop Visit And Quality Check
Turnkey Project:	Acceptable	Design:	Custom With Free Architectural Design
Dimensions:	Customers' Requirement	Door:	Sliding Door Or Rolling Up Door
Color:	Client's Request	Surface:	Hot-dip Galvanized / Painted
Frame:	Steel Structure	Lifetime:	Over 50 Years
Structure Type:	High Strength Steel Structure Frame	Third Party Test:	SGS, BV, ITS

Installation:	Free Installing Drawing Details & Quick On-line Technical Guide
Prefabrication:	Off-site In Workshop & Ready For Direct Installation
Connection:	High Strength Bolt Connected
Visit:	Workshop Visit And Quality Check
Turnkey Project:	Acceptable
Design:	Custom With Free Architectural Design
Dimensions:	Customers' Requirement
Door:	Sliding Door Or Rolling Up Door
Color:	Client's Request
Surface:	Hot-dip Galvanized / Painted
Frame:	Steel Structure
Lifetime:	Over 50 Years
Structure Type:	High Strength Steel Structure Frame
Third Party Test:	SGS, BV, ITS

Product Description

Steel Structure System		Specification
Main Steel Frame	Column	Q235b, Q355b ,H Steel, Box Steel, RHS, SHS, CHS
Main Steel Frame	Beam	Q235b, Q355b ,H Steel, Box Steel, RHS, SHS, CHS
Secondary Frame	Purlin	Q235b C / Z Purlin, SHS, RHS
	Knee brace	Q235b Angle Steel
	Tie beam	Q235b Circular Steel Pipe
	Brace	Q235b Round Bar
	Vertical and Horizontal Support	Q235b Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof Panel	PPGI PPGL Steel Sheet Insulated Sandwich Panel (EPS /Glass Fiber / Rock Wool / PU)
Maintenance system	Wall Panel
Accessories	Window	Aluminum Alloy Window / PVC Window
	Door	Sliding Door / Rolling Up Shutter / Man Door
	Rain-spout	PVC-U
Option		Parapet; Canopy; Shed; Glass Curtain Wall; Aluminum wall panel

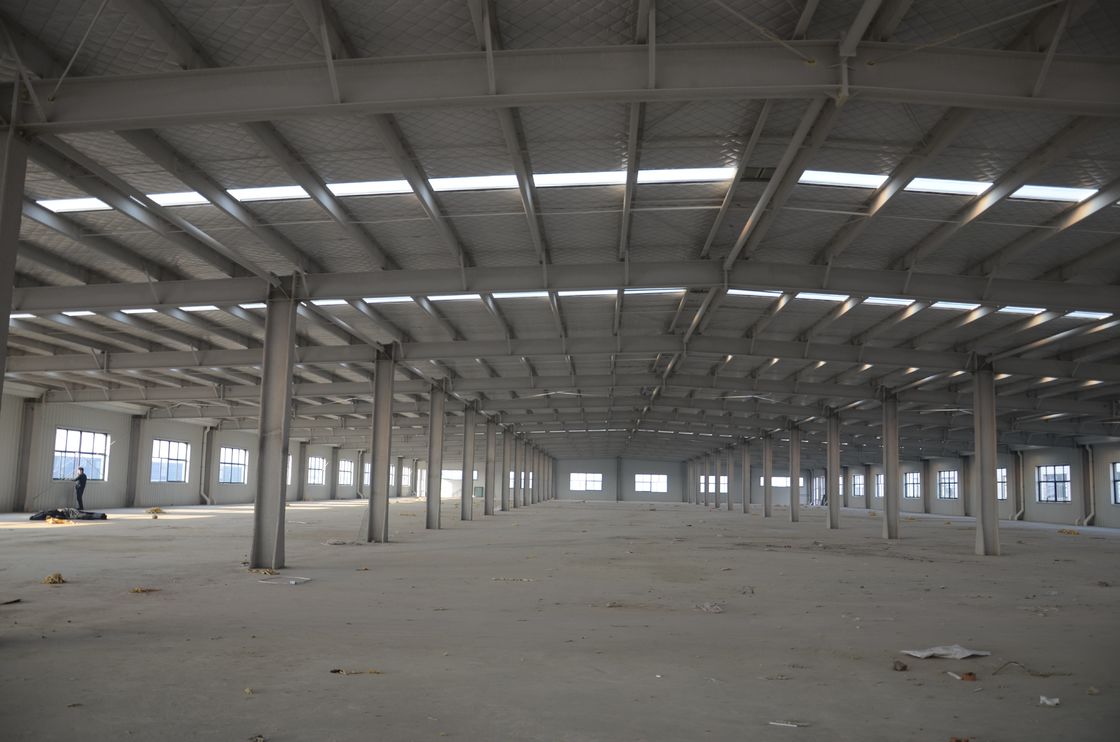

Portable Light Steel Structure Hangar Warehouse Shed Building 0

Portable Light Steel Structure Hangar Warehouse Shed Building 1

Portable Light Steel Structure Hangar Warehouse Shed Building 2

Pre-engineered steel buildings are buildings made of steel structures and fabricated and installed according to pre-specified architectural and technical drawings. The process of making finished products (with a combination of inspection and quality control steps) goes through 3 main stages:

Design, Fabrication of components and Erection at the site. The entire steel structure can be produced synchronously and then delivered to the construction site in a relatively short time.

Portable Light Steel Structure Hangar Warehouse Shed Building 3

Our Machines and production lines show:

Portable Light Steel Structure Hangar Warehouse Shed Building 4

Portable Light Steel Structure Hangar Warehouse Shed Building 5

With rich experience of various type steel buildings, we have been successfully completing overseas projects in North America, South America, South Asia and Africa countries.

Portable Light Steel Structure Hangar Warehouse Shed Building 6

Portable Light Steel Structure Hangar Warehouse Shed Building 7

Steel Structure Frame
A steel structure is a metal structure made of structural steel members that are connected to each other to carry loads and provide complete rigidity.	Hot-rolled H-section steel is an economical section high efficiency profile with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named H steel, because its cross-section as the English letter "H". Hot rolled H-section steel has the advantages of strong bending resistance, simple construction, cost saving and light weight. So now it has been widely applied in steel structure.
Roof and Wall Cladding System
Cladding system in steel structure construction plays an important part. It affects the whole building's energy consumption.	Steel sheet, which is the cheapest without any insulation. EPS Sandwich Panel, which is good insulated but flammable. Glass Fiber Sandwich Panel,which is with general insulation but non-flammable. Rock Wool Sandwich Panel, which is with good insulation and is non-flammable. Pu sandwich Panel , which is most expensive, with prefect insulation and non-flammable and waterproof.
Connecting Bolts
In the site installation, the steel structure components normally adopt bolt connection for the quick and easy processing. In order to meet the bolt connection requirements, the manufacture needs to make holes in the corresponding positions on the surface of the steel components. And the holes' position and dimension must meet the specification requirements. If the installation has trouble of unqualified holes on the site, it will needs the manufacturing rework. It will cause the extra economic losses.

Your Building details confirm to get the design & quotation:

For prefab steel buildings, our engineer team has over 20years experience for various steel structure types and different standards. So no matter your own plan or our customized design for you, both are acceptable. If you have your own plan, please share. We will check and offer the quotation by your design. If you have no plan, only ideas, it is also ok. Please help to check the below details. We will make and offer the free architectural design for you.

Details to confirm to get a quick design and quotation:
Size	Length × Width × Length
Building Application	its exact usage or special requirements
Roof & Wall material	Steel sheet ? Insulated Panel ? Decorative Panel?
Crane	yes or not? Ton?
Wind Load	wind speed km/h or m/s or mph?
Snow Load	snow weight kg/m2 or Kn/m2?
Door & Window	Sizes? Quantity? Layout?
Inner Layout	Partition room?
More requirements	Parapet? Skylight? Ventilation? Canopy? Glass wall curtain?

KXD is on-line for your any questions! Feel free to contact!
