Highlight:
Workshop Steel Structure
, Coal Storage Shed Steel Structure
, Customized Power Plant Steel Structure
After-sale Service: |
Online Technical Support, Onsite Installation, Onsite Training, Other |
Project Solution Capability: |
Graphic Design, 3D Model Design, Total Solution For Projects, Others |
Application: |
Warehouse |
Material: |
Q235/Q345 Steel |
Keyword: |
Prefab Steel Structure Warehouse Workshop |
Type: |
Light Steel Structure Frame |
Window: |
Aluminum Alloy Window |
Roof Cladding: |
Sandwich Panel Glass Wool |
Customized Power Plant Steel Structure Warehouse Space Frame Coal Storage Shed Workshop
Coal Mineral Process Workshop
Short Description:
Length*Width*Height: 286*90*31m
Usage: used as workshop for coal mineral process.
Property: install solar panel at the workshop top, green energy building.
Main Steel Structure Frame

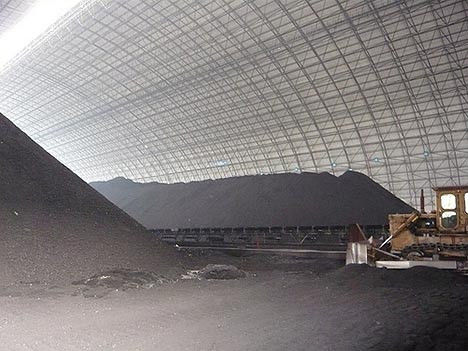

Main structure is made by steel pipe, we called it space frame structure, this type structure got light self weight, so that the column and concrete foundation no need very heavy, saved construction cost. Also the distance between support column can be very big, which is easy for the car under it to pass.
Steel Support System
The space frame support is made by round pipe, and the support full of the structure, which is a very stable and strong structure.
Wall & Roof Covering System
Roof purlin: galvanized C steel, common choice for standard steel structure workshop building.
Side purlin: galvanized C steel, the steel get galvanized manufacture treatment will get a longer life time.
Roof sheet: use V840 steel sheet panel as standard roof cover, which is a popular choice for most of the workshop roof cover.
Wall sheet: use aluminum plastic panel las wall panel, which is easy maintenance for after installation.
Additional System
Rain gutter: Inner gutter use galvanized steel gutter, so that the gutter life time is long and no need maintenance in future.
Out gutter used steel sheet gutter to get a easy installation process.
Downpipe: Plastic pipe with life time 60 years guarantee, no need maintenance in workshop life time.
