Product Description:
| Item |
Description |
| Size |
Width,Height, length and roof slope |
| Steel grade |
Q235B or Q345B carbon steel and alloy steel |
| Column and beam |
Hot rolled or high-frequency welding H-section steel |
| Purlin |
Hot galvanized C/Z section steel,size of C100-C320,Z160-Z300 |
| Brace |
X or V or other type bracing made of angle steel,round bar |
| Roof and wall |
EPS/PU/Glass wool sandwich panel, steel color sheet |
| Door |
Rolling shutter, lift door, steel door, glass door, fire-proof door,etc. |
| Window |
PVC / aluminum alloy window / plastic steel window |
| Connection |
Bolts/ welding / riveting |
| Crane |
Usually as customer's requirement, the maximum we can do is 200T or more |
| Surface treatment |
Hot dip galvanized or painting |
Technical Parameters:
| Steel Structure Building Design |
| 1) Simple steel structure |
| Main structure |
Single span shorter than 18m, lower than 6m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet |
| Door |
Simple steel rolling shutter(within 10m2) |
| Window |
Very few |
| Usage |
Warehouse, workshop, |
| Standard and suitable market |
Africa,mid-east, Australia (no snow, wind load below 0.4kn/m2) |
| (2) Standard steel structure |
| Main structure |
Single span shorter than 24m, lower than 8m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet or 50mm EPS sandwich panel |
| Door |
Wind resistance rolling door(within 15m2) |
| Window |
Alu.Alloy(can with skylight) |
| Usage |
Warehouse, workshop, shopping mall, exhibition, supper market |
| Standard and suitable market |
Snow loading below 0.5kn,wind loading below 0.5kn/m2 |
| (3) Cold region(heavy snow)steel structure |
| Main structure |
Single span shorter than 18m, lower than 6m |
| Maintenance system |
Roof |
EPS/rock wool/PU sandwich board |
| Wall |
EPS/rock wool/PU sandwich board |
| Door |
PU foamed rolling door |
| Window |
Alu.Alloy, Hollow glass |
| Usage |
Warehouse, workshop,hangar, shopping mall ,exhibition hall, supper market |
| Standard and suitable market |
Cold regions such as Norway, Russia, North Canada, Finland, Iceland Greenland, Sweden,etc.(snow loading below 3kn, wind load below 1KN/M2) |
| (4)Steel structure with crane(5T,10T,20T) |
| Main structure |
Single span shorter than 20m, lower than 10m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet or sandwich board |
| Door |
Wind resistance rolling door(within 15m2) |
| Window |
Alu.Alloy(can with skylight) |
| Usage |
Warehouse, workshop, hangar |
| Standard and suitable market |
Snow 0.5kn,wind load below 0.5kn/m2 |
Features

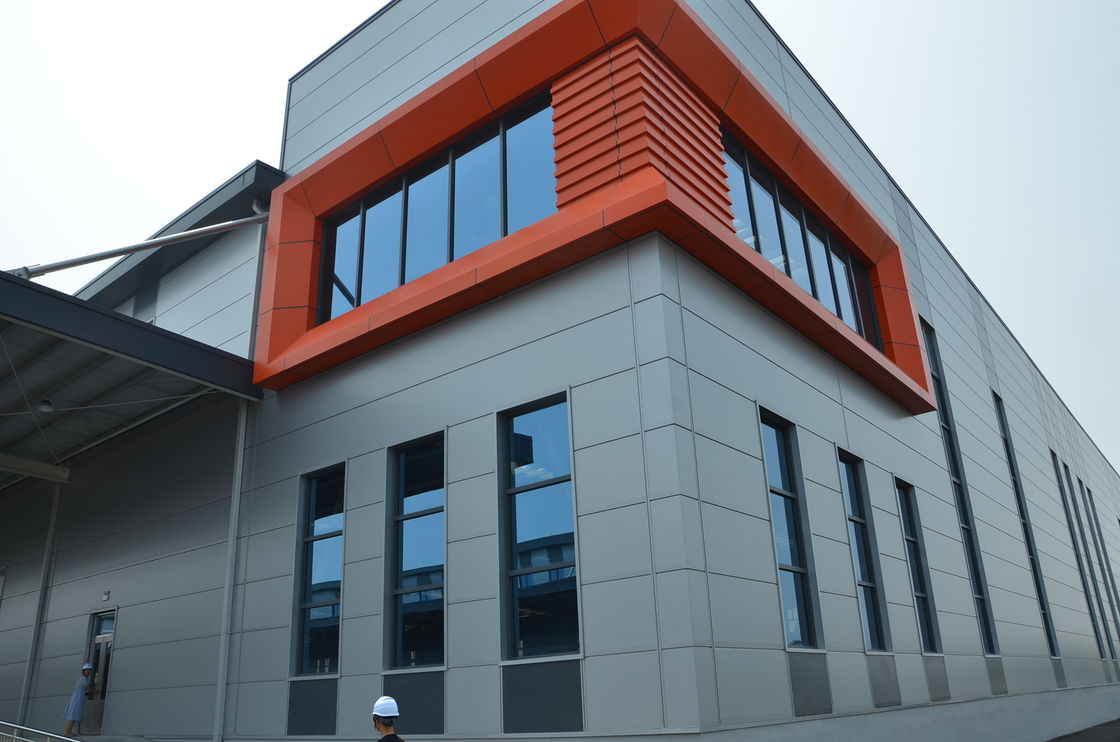

1. Attractive design: The whole Steel structure workshop looks beautiful and elegant. The inner/ outer walls and the roof boarding all use the same color steel panel, and the filling material could be a thermal core.
2. Lightweight and convenient in shipping.
3. Easy to assemble and dismantle: the steel structure workshop can be rebuilt dozens of times. The assembling only requires simple tools: plugs and screws, and we can send engineers to help you to install them.
4. Firm structure: the steel structure warehouse adopts a steel frame structure and sandwich panels.
5. Waterproof: Our warehouses are completely waterproof.
6. Customized. The customer can choose the roof, wall, door, and windows.
7. Durable: The steel frame parts are all processed with an anti-corrosion coating and can be used for as long as 50 years from the design date.
Quote Information
Could you pls advise your requirements for the steel structure project?
1. Project location;
2. Dimension (length*width*eave height);
3. There is mezzanine or not? How many kgs will be loaded per square meter on the mezzanine if have?
4. Steel sheet or sandwich panel roof and wall;
5. Snow load if applicable;
6. Wind speed;
7. There is a crane inside the building or not?;
9. Any other particular requirements?
Support and Services:
Our Steel Structure Warehouse product comes with the following technical support and services:
-
Assistance with the installation and assembly of the steel structure
-
Provide tailor-made custom design plans
-
Multiple automated manufacturing plants meet the processing needs of steel structure portal steel frames and special-shaped steel.
Consultation on customization options to meet specific needs
Our team of experts is dedicated to ensuring your satisfaction with our Steel Structure Warehouse product and is available to assist you every step of the way.
Packing and Shipping:
Product Packaging:
Our Steel Structure Warehouse product will be packaged in high-quality packaging materials to ensure safe transportation and delivery to your location. Each component will be carefully wrapped and secured to prevent damage during shipping.
Product Shipping:
We offer reliable and efficient shipping options for our Steel Structure Warehouse product. Our team will work with you to determine the best shipping method based on your location and delivery requirements. We will provide you with tracking information so you can easily monitor the status of your shipment.
FAQ:
Q:Are you a manufacturer or trading company?
A:We are a manufacturing factory located in Qingdao city, near the Qingdao port. We have three workshops, covering everything from steel structures to wall and roof sheets.
Q: How about your quality control?
A: We have ISO and CE certificates. Products are processed through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, and loading to ensure no quality defects.
Q: Is third-party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirements.
Q: How about your delivery time?
A: Generally, within 30-45 days, depending on the order quantity. Partial shipment is allowed for big orders.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey jobs for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: The sales and engineering team will provide you a suitable solution according to your requirements before placing an order. Proposal drawing, Shop drawings, 3D drawings, Materials photos, and Finished projects photos are available, which will help you understand the solution we provided deeply.
