Product Description:

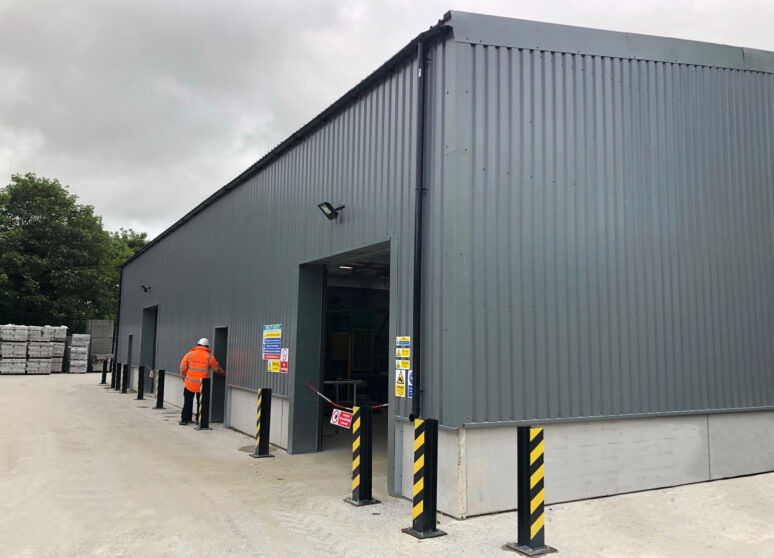

KXD steel structure warehouse building has features of high fire resistance and strong corrosion resistance. Steel structure warehouse mainly refers to the main bearing component composed of steel. Including the steel columns, steel beams, steel structure, and steel roof truss. Each component uses welds, bolts, or rivets to connect.
The roof and wall can be made of composite panels or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of a self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panels for the roof and wall. The sandwich is polystyrene, glass fiber, rock wool, and polyurethane. They have good thermal insulation, heat insulation, and fire-retardant. The wall of the steel structure maintenance also can use brick walls. The cost of a brick wall is higher than a galvanized steel roof and wall.
The usage scale includes large-scale workshops, warehouses, supermarkets, entertainment centers, and modular steel structure garages.
| Items |
Specification |
| Main Steel Frame |
Column |
Q235, Q345 Welded H Section Steel |
| Beam |
Q235, Q345 Welded H Section Steel |
| Secondary Frame |
Purlin |
Q235 C and Z purlin |
| Knee brace |
Q235 Angle Steel |
| Tie Rod |
Q235 Circular Steel Pipe |
| Brace |
Q235 Round Bar |
| Vertical and Horizontal Support |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system |
Roof Panel |
EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |
| Accessories |
Window |
Aluminum Alloy Window / PVC Window / Sandwich Panel Window |
| Door |
Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout |
PVC |
| Live load on Roof |
In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Finishing Options |
A vast array of colors and textures are available |
| Paint Options |
Alkyd painting, two primary paintings, two finished paintings
(gray paint, red paint, white paint, epoxy zinc, etc.) Or Galvanized. |
Technical Parameters:
| Steel Structure Building Design |
| 1) Simple steel structure |
| Main structure |
Single span shorter than 18m, lower than 6m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet |
| Door |
Simple steel rolling shutter(within 10m2) |
| Window |
Very few |
| Usage |
Warehouse, workshop, |
| Standard and suitable market |
Africa,mid-east, Australia (no snow, wind load below 0.4kn/m2) |
| (2) Standard steel structure |
| Main structure |
Single span shorter than 24m, lower than 8m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet or 50mm EPS sandwich panel |
| Door |
Wind resistance rolling door(within 15m2) |
| Window |
Alu.Alloy(can with skylight) |
| Usage |
Warehouse, workshop, shopping mall, exhibition, supper market |
| Standard and suitable market |
Snow loading below 0.5kn,wind loading below 0.5kn/m2 |
| (3) Cold region(heavy snow)steel structure |
| Main structure |
Single span shorter than 18m, lower than 6m |
| Maintenance system |
Roof |
EPS/rock wool/PU sandwich board |
| Wall |
EPS/rock wool/PU sandwich board |
| Door |
PU foamed rolling door |
| Window |
Alu.Alloy, Hollow glass |
| Usage |
Warehouse, workshop, hangar, shopping mall , exhibition hall, supper market |
| Standard and suitable market |
Cold regions such as Norway, Russia, North Canada, Finland, Iceland Greenland, Sweden, etc.(snow loading below 3kn, wind load below 1KN/M2) |
| (4)Steel structure with crane(5T,10T,20T) |
| Main structure |
Single span shorter than 20m, lower than 10m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet or sandwich board |
| Door |
Wind resistance rolling door(within 15m2) |
| Window |
Alu.Alloy(can with skylight) |
| Usage |
Warehouse, workshop, hangar |
| Standard and suitable market |
Snow 0.5kn,wind load below 0.5kn/m2 |
A steel structure warehouse is an efficient and versatile industrial facility that utilizes steel as the main building material. These warehouses are purposefully designed to provide a functional and optimized space for various manufacturing, assembly, and production processes.
Steel structure warehouses offer a wide range of benefits, including:
(1) Durability: Steel is known for its exceptional durability and strength, making steel structure warehouses highly resistant to harsh environmental conditions and potential damage. This ensures the longevity and reliability of the facility, providing a secure and protected work environment.
(2) Flexibility: Steel structure warehouses offer design flexibility, allowing for customizable layouts that can accommodate specific workflow requirements. The open-span design of steel structures provides ample space for machinery, equipment, and storage, facilitating efficient operations and easy movement within the workshop.
(3) Cost-Effectiveness: Steel structure warehouses are cost-effective in terms of both construction and maintenance. The use of prefabricated steel components speeds up the construction process, reducing labor costs and minimizing project timelines. Additionally, steel requires minimal maintenance over its lifespan, resulting in long-term cost savings.
If you need, we can design the best quality scheme and cost calculation for you according to your drawings or needs.
(1) Dimension: Length, width, height, eave height, roof pitch, etc.
(2) Doors and windows: Dimension, quantity, position.
(3) Local climate: Wind speed, snow load, seismic magnitude, etc.
(4) Insulation material: Panel type, sandwich materials, sandwich thickness
(5) crane metal structures: If have an overhead crane, please tell us the lifting height and lifting weight.
(6) Is there any materials that are not allowed to be imported to the country where the structure is planning to be used?
(7) If you have other requirements, such as fireproofing, insulated roof, etc. Please also inform us.
(8) It's better if you have your drawings or pictures. Please send them to us.
Support and Services:
Our Steel Structure Warehouse product comes with the following technical support and services:
- Assistance with the installation and assembly of the steel structure
- Provide tailor-made custom design plans
- Multiple automated manufacturing plants meet the processing needs of steel structure portal steel frames and special-shaped steel.
Consultation on customization options to meet specific needs
- Technical support for any issues or questions that may arise
Our team of experts is dedicated to ensuring your satisfaction with our Steel Structure Warehouse product and is available to assist you every step of the way.
Packing and Shipping:
Product Packaging:
Our Steel Structure Warehouse product will be packaged in high-quality packaging materials to ensure safe transportation and delivery to your location. Each component will be carefully wrapped and secured to prevent damage during shipping.
Product Shipping:
We offer reliable and efficient shipping options for our Steel Structure Warehouse product. Our team will work with you to determine the best shipping method based on your location and delivery requirements. We will provide you with tracking information so you can easily monitor the status of your shipment.
FAQ:
Q:Are you a manufacturer or trading company?
A:We are a manufacturing factory located in Qingdao city, near the Qingdao port. We have three workshops, covering everything from steel structures to wall and roof sheets.
Q: How about your quality control?
A: We have ISO and CE certificates. Products are processed through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, and loading to ensure no quality defects.
Q: Is third-party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirements.
Q: How about your delivery time?
A: Generally, within 30-45 days, depending on the order quantity. Partial shipment is allowed for big orders.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey jobs for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: The sales and engineering team will provide you a suitable solution according to your requirements before placing an order. Proposal drawing, Shop drawings, 3D drawings, Materials photos, and Finished projects photos are available, which will help you understand the solution we provided deeply.
