Product Description:

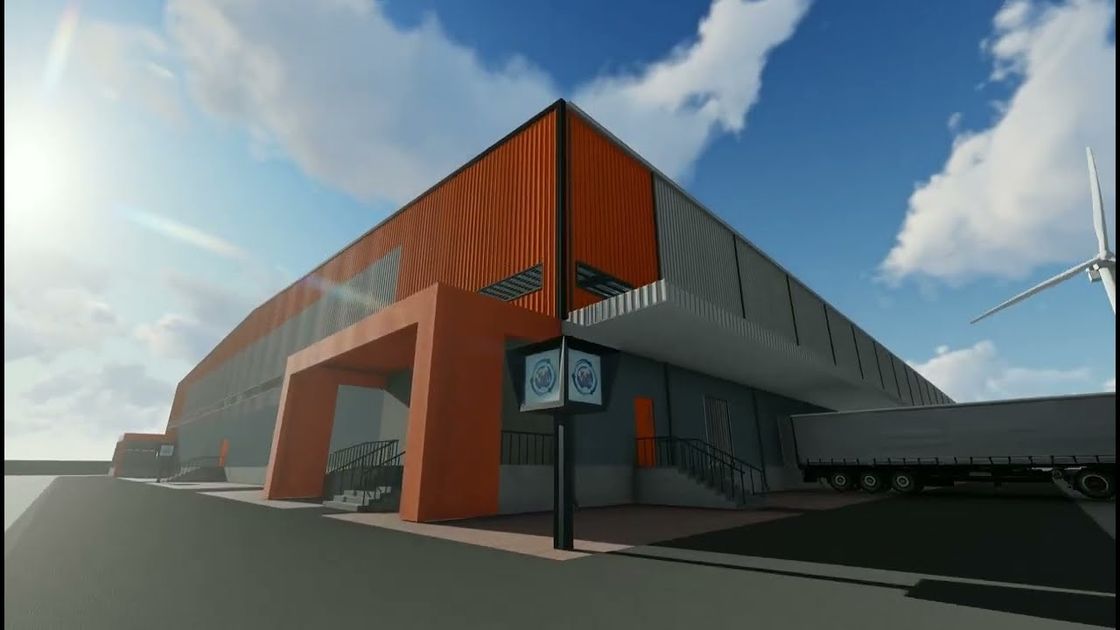

Steel Structure Workshop is a kind of metal building workshop, which is made of high-strength steel and offers excellent insulation and durability. It is designed with a portal structure and provides optional insulation so that it can meet the needs of the customers. The walls and roofs of the steel structure workshop are made of sandwich panels or color steel sheets, and the purlin is made of C-section or Z-section steel. As for the door, it can be a rolled-up door or a sliding door.
Compared with traditional concrete, steel structure has obvious advantages in the construction period, energy-saving, and earthquake resistance. As a green and low-carbon building, it is in line with the current environmental protection concept.
| Main Steel Frame |
Q235 Q345 H Section Steel Beam and Columns, Painted or Galvanized,
Galvanized C Section or Steel Pipe
|
| Secondary Frame |
Galvanized C Purlin, Steel Bracing, Tie Bar, Knee Brace, Edge Cover, etc. |
| Roof Panel |
EPS Sandwich Panel, Glass Fiber Sandwich Panel, Rock Wool Sandwich
Panel, and Pu Sandwich Panel or Steel Sheet
|
| Wall Panel |
Sandwich Panel or Corrugated Steel Sheet |
| Tie Rod |
Circular Steel Tube |
| Brace |
Round Bar |
| Knee Brace |
Angle Steel |
| Door |
Sliding Sandwich Panel Door or rolling Metal Door |
| Connecting |
Post Feet Bolts, Intensive Bolt , Intensive Bolt |
| Packing |
According to The Pack List Made by Our Engineer |
| Drawing |
We Can Make the Design and Quotation According to Your Require or Your Drawing |
Technical Parameters:
| Steel Structure Building Design |
| 1) Simple steel structure |
| Main structure |
Single span shorter than 18m, lower than 6m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet |
| Door |
Simple steel rolling shutter(within 10m2) |
| Window |
Very few |
| Usage |
Warehouse, workshop, |
| Standard and suitable market |
Africa,mid-east, Australia (no snow, wind load below 0.4kn/m2) |
| (2) Standard steel structure |
| Main structure |
Single span shorter than 24m, lower than 8m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet or 50mm EPS sandwich panel |
| Door |
Wind resistance rolling door(within 15m2) |
| Window |
Alu.Alloy(can with skylight) |
| Usage |
Warehouse, workshop,shopping mall, exhibition,supper market |
| Standard and suitable market |
Snow loading below 0.5kn,wind loading below 0.5kn/m2 |
| (3) Cold region(heavy snow)steel structure |
| Main structure |
Single span shorter than 18m, lower than 6m |
| Maintenance system |
Roof |
EPS/rock wool/PU sandwich board |
| Wall |
EPS/rock wool/PU sandwich board |
| Door |
PU foamed rolling door |
| Window |
Alu.Alloy, Hollow glass |
| Usage |
Warehouse, workshop,hangar, shopping mall ,exhibition hall, supper market |
| Standard and suitable market |
Cold regions such as Norway, Russia, North Canada, Finland, Iceland Greenland, Sweden,etc.(snow loading below 3kn, wind load below 1KN/M2) |
| (4)Steel structure with crane(5T,10T,20T) |
| Main structure |
Single span shorter than 20m, lower than 10m |
| Maintenance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet or sandwich board |
| Door |
Wind resistance rolling door(within 15m2) |
| Window |
Alu.Alloy(can with skylight) |
| Usage |
Warehouse, workshop, hangar |
| Standard and suitable market |
Snow 0.5kn,wind load below 0.5kn/m2 |
Characteristics
1. Wide span: single span or multiple spans, the max span is 36m without middle column
2. Low cost and maintenance: unit price range from USD35/m2 to USD70/m2 according to customers request
3. Fast construction and easy installation: time-saving and labor-saving
4. Long using lifespan: up to 50 years
5. Nice appearance
6. Others: environmental protection, stable structure, High quake-proof, waterproof and fireproof, and energy conserving.
If you need, we can design the best quality scheme and cost calculation for you according to your drawings or needs.
(1) Dimension: Length, width, height, eave height, roof pitch, etc.
(2) Doors and windows: Dimension, quantity, position.
(3) Local climate: Wind speed, snow load, seismic magnitude, etc.
(4) Insulation material: Panel type, sandwich materials, sandwich thickness
(5) crane metal structures: If have an overhead crane, please tell us the lifting height and lifting weight.
(6) Is there any materials that are not allowed to be imported to the country where the structure is planning to be used?
(7) If you have other requirements, such as fireproofing, insulated roof, etc. Please also inform us.
(8) It's better if you have your drawings or pictures. Please send them to us.
Support and Services:
Our Steel Structure Warehouse product comes with the following technical support and services:
- Assistance with the installation and assembly of the steel structure
- Provide tailor-made custom design plans
- Multiple automated manufacturing plants meet the processing needs of steel structure portal steel frames and special-shaped steel.
Consultation on customization options to meet specific needs
- Technical support for any issues or questions that may arise
Our team of experts is dedicated to ensuring your satisfaction with our Steel Structure Warehouse product and is available to assist you every step of the way.
Packing and Shipping:
Product Packaging:
Our Steel Structure Warehouse product will be packaged in high-quality packaging materials to ensure safe transportation and delivery to your location. Each component will be carefully wrapped and secured to prevent damage during shipping.
Product Shipping:
We offer reliable and efficient shipping options for our Steel Structure Warehouse product. Our team will work with you to determine the best shipping method based on your location and delivery requirements. We will provide you with tracking information so you can easily monitor the status of your shipment.
FAQ:
Q:Are you a manufacturer or trading company?
A:We are a manufacturing factory located in Qingdao city, near the Qingdao port. We have three workshops, covering everything from steel structures to wall and roof sheets.
Q: How about your quality control?
A: We have ISO and CE certificates. Products are processed through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, and loading to ensure no quality defects.
Q: Is third-party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirements.
Q: How about your delivery time?
A: Generally, within 30-45 days, depending on the order quantity. Partial shipment is allowed for big orders.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey jobs for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: The sales and engineering team will provide you a suitable solution according to your requirements before placing an order. Proposal drawing, Shop drawings, 3D drawings, Materials photos, and Finished projects photos are available, which will help you understand the solution we provided deeply.
