Pre Engineered Steel Structure Building
, CE Steel Structure Building
, Pre Engineered Steel Storage Warehouse
Pre-Engineered Steel Structure Cold Steel Storage Warehouse Cold Room
Pre-engineered Steel structure cold steel storage warehouse manufacturers in china
Steel structure cold storage,cold storage structure,cold storage warehouse,sheet metal warehouse,cold steel warehouse.
Product Description
Steel structure shed for cold room:
A: Light steel structure modular house with the color steel sandwich panel.
B: The design wind load 60km/h and 7 grade earthquake.
C: 100mm thickness PU heat insulation
D : Produce according to requirement of customer.
| Wall panel |
Specification
1. Cam lock type polyurethane sandwiched Insulation panel, Thickness :150mm
2. CFC-free environmental friendly raw material
3. 40+/-2kg/M3 high density
4.Fire-proof: B2 grade |
| Roof panel |
| Floor panel |
| Bitzer Condensing Unit 2HP for Ante Room |
Specification:
1. With Original New Bitzer compressor
Horsepower:2HES-2Y (2HP)
2. Voltage :380V/50HZ/3PH
3. Running R404 refrigerant
4. Evaporating SST: 0C
Condensing SDT: 40C |
| Bitzer Condensing Unit 9HP for Ice Cream Room |
Specification:
1. With Original New Bitzer compressor
Horsepower: 4TES-9Y (9HP)
2. Voltage :380V/50HZ/3PH
3. Running R404 refrigerant
4. Evaporating SST: -32C
Condensing SDT: 40C |
| Bitzer Condensing Unit 4HP for Yoghurt Milk Room |
Specification:
1. With Original New Bitzer compressor
Horsepower:2CES-4Y(4HP)
2. Voltage :380V/50HZ/3PH
3. Running R404 refrigerant
4. Evaporating SST: -5C
Condensing SDT: 40C |
| Bitzer Condensing Unit 3HP for Garlic Room |
Specification:
1. With Original New Bitzer compressor
Horsepower:2DES-3Y(3HP)
2. Voltage :380V/50HZ/3PH
3. Running R404 refrigerant
4. Evaporating SST: -8C
Condensing SDT: 40C |
| Bitzer Condensing Unit 3HP for Ginger Room |
Specification:
1. With Original New Bitzer compressor
Horsepower:2DES-3Y(3HP)
2. Voltage :380V/50HZ/3PH
3. Running R404 refrigerant
4. Evaporating SST: 0C
Condensing SDT: 40C |
| Bitzer Condensing Unit 18HP for Raw Material Room |
Specification:
1. With Original New Bitzer compressor
Horsepower:4HE-18Y (18HP)
2. Voltage :380V/50HZ/3PH
3. Running R404 refrigerant
4. Evaporating SST: -28C
Condensing SDT: 40C |
| Evaporator for Ante Room |
Specification:
1. Model: DL25
2. Fin Space: 9mm
3. Cooling Capacity:5.2KW
4. Air Flow:2*2200m3/h
5.Heat exchange area: 55m2
|
| Evaporator for Ice Cream Room |
Specification:
1. Model: DJ55
2. Fin Space: 9mm
3. Cooling Capacity:9.8KW
4. Air Flow:2*6000m3/h
5.Heat exchange area: 55m2
|
| Evaporator for Yoghurt Milk Room |
Specification:
1. Model: DD60
2. Fin Space: 4.5mm
3. Cooling Capacity:12KW
4. Air Flow:2*6000m3/h
5.Heat exchange area: 60m2
|
| Evaporator for Garlic Room |
Specification:
1. Model: DD40
2. Fin Space: 4.5mm
3. Cooling Capacity:8KW
4. Air Flow:2*3000m3/h
5.Heat exchange area: 40m2
|
| Evaporator for Ginger Room |
Specification:
1. Model: DD40
2. Fin Space: 4.5mm
3. Cooling Capacity:8KW
4. Air Flow:2*3000m3/h
5.Heat exchange area: 40m2
|
| Evaporator for Raw Material Room |
Specification:
1. Model: DD120
2. Fin Space: 4.5mm
3. Cooling Capacity:24KW
4. Air Flow:3*6000m3/h
5.Heat exchange area: 120m2
|
| Electrical Control Panel: Function of defrost controlling, short circuit protection, over current protection, voltage protection, phase protection Schneider Electrical parts and Dixell temperature controller |
sets |
6 |
$465.00 |
$2,790.00 |
|
| Danfoss Expansion Valve |
sets |
6 |
$212.00 |
$1,272.00 |
|
| Release window |
sets |
6 |
$7.29 |
$43.74 |
|
| Glue + Damp-proof Led Lightings |
sets |
6 |
$292.00 |
$1,752.00 |
|

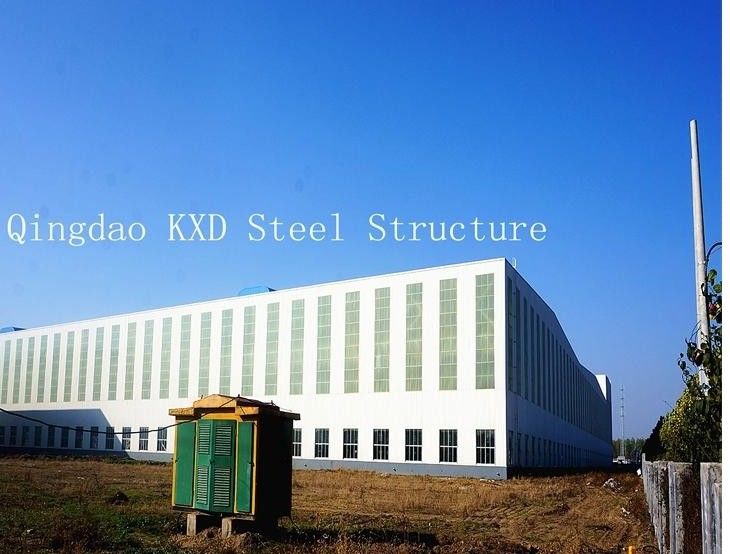

KXD has exported steel structure building sales to:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern and so on more than 80 countries and regions for different projects. KXD’s quality products and comprehensive services have gained a first-class reputation in the industry.
STEEL STRUCTURE WORKSHOP ADVANTAGE:
1. COMPETITIVE PRICE AND SHORT CONSTRUCTION PERIOD
2. STRICT QUALITY CONTROL
3. FAST AND EASY INSTALLATION.
4. STEEL GRADE: Q345/ Q235
5. SAVE WHOLE COST
This project requires professional design and architectural capabilities,quality products, we can design,manufacture and build up the whole building for you.
1) Steel frame. we generally H-beam hot rolled or welding as columns and beam. Our engineer can choose suitable section of steel according to your information such as wind load, snow load and so on. Material of steel is Q345 China's steel standard.
2) For bracing, Angle steel is common products. Others is round steel.
3) For purlin, we generally use C purlin. C-purlin galvanized.
4)For steel corrugate panel, we generally use V840 single steel sheet as roofing panel. and choose V960 single as wall panel.
5) Doors use sliding sandwich panel door or roll up shutter door
6) Window use PVC/Plastic Steel/Aluminum Alloy sliding Window
7) Surface treatment is painting or hot dip galvanised.
