Product Description:
Our Steel Structure Buildings are also designed with aesthetics in mind, featuring a modern and contemporary design that is sure to impress. Whether you are looking for a Commercial Steel Frame Building, Agricultural Industrial Steel Building, or a High Rise Steel Building Construction, our Steel Structure Buildings are the perfect solution.
| The main options of the componets are as the following: |
| Main Structure |
Column |
Q355B Welded H column |
| Rafter, Beam |
Q355B Welded H column |
| Surface processing options |
1. Epoxy zinc-rich primer + epoxy mica termediate paint |
| 2. Hot dip galvanization |
| Sub Structure |
Purlin |
Q235B, C section steel, galvanization 80-275g/m2 |
| Angle brace |
Q235B, L- steel |
| Cross bracing |
Q235B round bar, L-steel |
| Tie bar |
Q235B, round pipe |
| Batter brace |
Q235B, round bar |
| Roof System |
Roof panel options |
1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Both sides are steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm-0.6mm |
| Gutter options |
1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm |
| 2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm |
| Down spout |
PVC pipe |
| Steel flashing and cover |
Steel sheet for roof ridge cap, gable wall end cover and corner cover |
| Options |
Roof skylight 1.8mm PVC sheet and stainless steel ventilator |
| Wall System |
Wall panel options |
1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of wall panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm |
| 3. Brick wall (provided by client) |
| Door |
1. Roller door for truck, size customized |
| 2. Sliding door for truck, size customized |
| 3. Access door, steel door, glass door etc. |
| Window |
PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size customized |
| Steel flashing and cover |
Steel sheet end cover and corner cover |
| Accessories and fasteners |
|
Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-tapping screws, rivet etc. |
Features:
- Product Name: Steel Structure Building
- Carbon Structural Steel: Q235/Q355
- Drawing Design: Provided By Customers Or Designed By Us
- Flange Thickness: 6-30mm
- Aesthetics: Modern/Contemporary
- Usage: Industrial/ Commercial/ Residential
- Features:
- Heavy Steel Fabrication
- High Rise Steel Building Construction
- Industrial Steel Construction
Applications:
|
Column and Beam
|
Column: Made from Q235 or Q345 welded H section steel, providing robust support and stability.
Beam: Constructed from Q235 or Q345 welded section steel, offering strength and durability for the structure.
|
|
Vertical and Transversal Support
|
Made from Q235 angle steel, round bar, or steel pipe, these supports offer additional stability and strength
|
|
Purlin
|
Crafted from Q235 C channel or Z channel, ensuring reliable secondary structural support for the roof.
|
|
Cladding System
|
Options include EPS, PU, Fiber Glass, and Rock Wool sandwich panels or corrugated steel sheets with fiberglass wool insulation.
Available in various colors and gauges to meet aesthetic and functional requirements.
|
FAQ:
Q:Are you manufacturer or trading company?

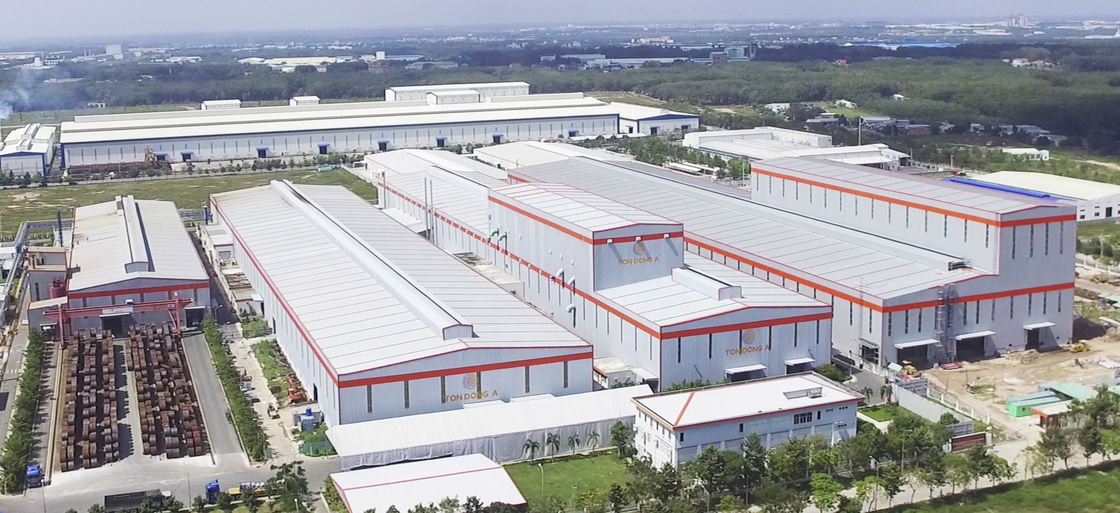

A:We are manufacture factory, located in Qingdao city, near to Qingdao port. And we have total 3 workshops from steel structure to wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution according to your requirements before placing order. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
