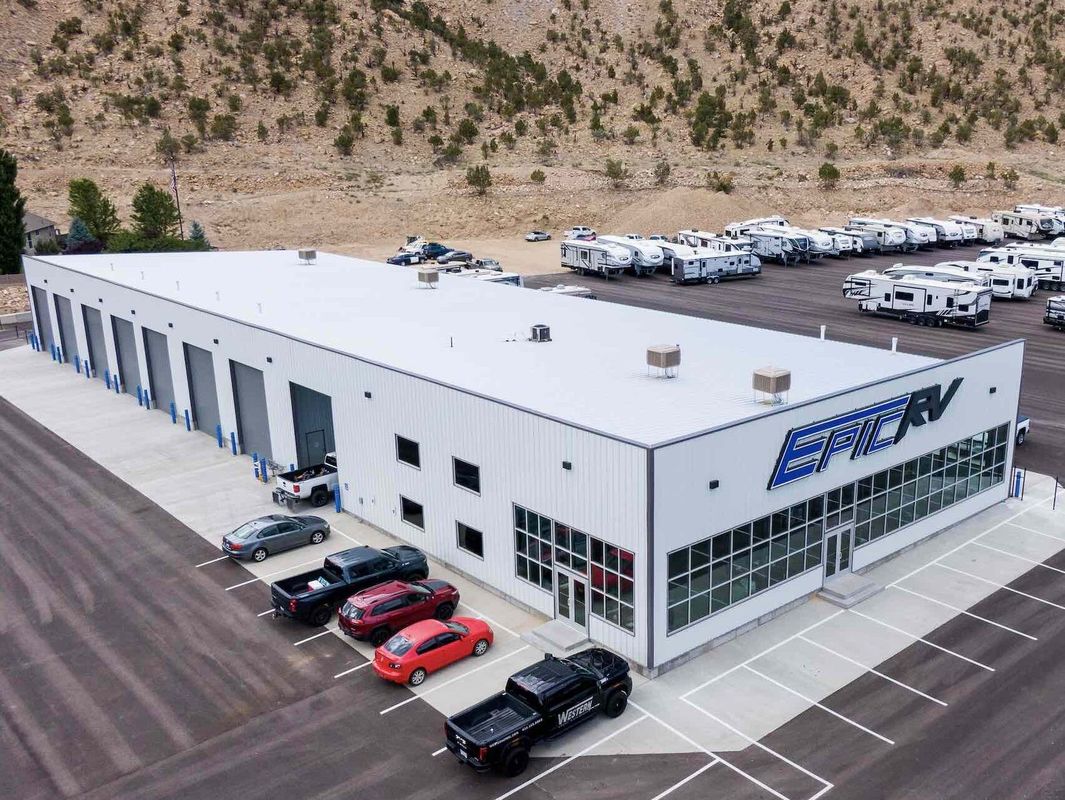

Portal Frame Steel Structure Building Construction For Prefabricated Commercial Warehouse /Industrial Fabrication
Product Description:
| Standard: |
AISI, ASTM, BS, DIN, GB, JIS |
Grade: |
Q235B/Q355B Carbon Steel |
| Place of Origin: |
Shandong, China |
Brand Name: |
KXD Steel Structure |
| Model Number: |
Steel Structures |
Type: |
Portal Frame Steel System |
| Application: |
Warehouse/Workshop/Sheds/Office Building/etc. |
Price: |
USD 30-80 Per Square Meter/Negotiable |
| Processing Service: |
Bending, Welding, Decoiling, Cutting, Punching |
Painting Color |
As To Customer's Requirements |
| Main structure: |
Section Column |
Purlin: |
C/Z Galvanized Steel(Q235) |
| Surface treatment: |
Painting or Galvanizing |
Wall&Roof panel: |
Steel Sheet or Sandwich Panel |
| Design |
3D Model, PKPM, Tekla Model |
Packaging Details |
Steel Pallet Or In Bulk |
| Delivery Time |
30-55 Days |
Certificate: |
ISO9001:2008 |
| Payment Terms |
T/T, L/C, Western Union, MoneyGram |
Supply Ability |
15000 Tons Per Month |
| High light |
Affordable prefabricated steel structure building, Durable prefabricated steel structure building, Industrial prefabricated steel structure building |
Features:
- Product Name: Steel Structure Building
- Color: Customized
- Carbon Structural Steel: Q235/Q355
- Drawing Design: Provided By Customers Or Designed By Us
- Usage: Industrial/ Commercial/ Residential
- Certificates: SGS/CE/ISO
This Steel Structure Building product is perfect for Agricultural Industrial Steel Buildings and can be used for a variety of Building Facilities And Construction Materials. The Building Construction Formwork can be customized to meet your specific needs.
Applications:
Building System
1.Strong steel structure frame is fastness,wind proof,snow proof,earthquake resistant.
2.Plasticity steel as steel warehouse materials is easy to design.So the warehouse is large space, light weight.
3.Sandwich panel and color corrugated steel sheet as maintenance system is heat insulation, good appearance, waterproof, sound proof.
4.Bolted connection steel workshop is easy to install and disassemble.
5.Cold bend steel gutter and downspout is good for drainage system.
We can design ourself to provide you a most suitable solution to you.
One stop service from design, manufacture, deliver to installation and after-service.
We can manufacture strictly according to your drawings and request.
| Specifications |
| 1)Size(m): |
Width * Length * Height; |
| 2)Type: |
Single slope, double slope, Multi-slope; |
| Single span, double-span, Multi-span; |
| Single floor, double-floor, Multi-floor; |
| 3) Base: |
steel foundation bolts |
| 4) Steel frame: |
Material Q345(S355JR)(Gr50)or Q235(S235JR) steel; |
| Straight cross-section or Variable cross-section; |
| steel welded H section painted or galvanized. |
| 5) Bracing: |
X-type or V-type or other type bracing made from angle, round bar, etc ; |
| 6) Wall & Roof Purlin: |
C section channel or Z section channel ,Size from C80~C300; Z100~Z300; |
| 7) Roof & wall cladding |
Single color corrugated steel sheet 0.326~0.7mm thickness; |
| Sandwich panel with EPS, ROCK WOOL,GLASS WOOL, PU etc insulation, thickness around 50mm 75mm 100mm 120mm 150mm 200mm; |
| recommend coating PVDF SMP HDP PE |
| 8)Window: |
UPVC/PVC or Aluminum Alloy window frame with glass. |
| 9)Door: |
Exterior door:Sliding or Roller shutter door. |
| Internal door:50mm thickness EPS sandwich panel with an aluminum alloy door frame |
| 10) Gutter material: |
Color steel sheet or galvanized steel or stainless steel; |
| 11)Rainspout: |
PVC pipe |
| 12)Connection |
high strength bolts ,intensive bolt,self-drilling screws. |
| 13)Accessories: |
Skylight panel, Ventilation, Fasteners etc |
| 14)Surface process: |
Shot blasting Sa2.5;Two layers of Anti-rust Painting or galvanized |
| 15) Packing: |
Main steel frame without packing load in 40' GP, roof and wall panel load in 40' HQ |
Support and Services:
Our Steel Structure Building product comes with comprehensive technical support and services to ensure that your building is constructed and maintained to the highest standards:
- Expert design and engineering services to customize your building to your specific needs and requirements.
- Assistance with obtaining necessary permits and approvals.
- High-quality materials and components sourced from reputable suppliers.
- Professional installation and construction services with experienced and skilled personnel.
- 24/7 technical support and troubleshooting assistance.
Our goal is to provide you with a seamless and stress-free experience from start to finish, and to ensure that your building meets or exceeds your expectations and requirements.
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to Qingdao port. And we have total 3 workshops from steel structure to wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution according to your requirements before placing order. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
