Highlight:
Prefabricated Steel Structure Shed
, Easy Installing Steel Structure Shed
, Low Cost Steel Structure Shed
Profile: |
Hot Rolled H Steel / Weld H Steel |
Material: |
Q355b, Q235b |
Technician: |
Free Technical Support |
Design: |
Custom Exactly As The Demands |
Drawing: |
3D Model And Installing Drawing Available |
Production: |
Finished For Direct Install Support |
Coating: |
Alkyd Painting, Epoxy Painting, Hot Dip Galvanized |
Insulation: |
EPS, Glasswool, Rockwool, PU On Option |
Standard: |
Different Standards On Option As Demands |
Install: |
Online Guide Support & On-site Install |
Service Life: |
30-50 Years |
Visit: |
Workshop Visit And Check Available |

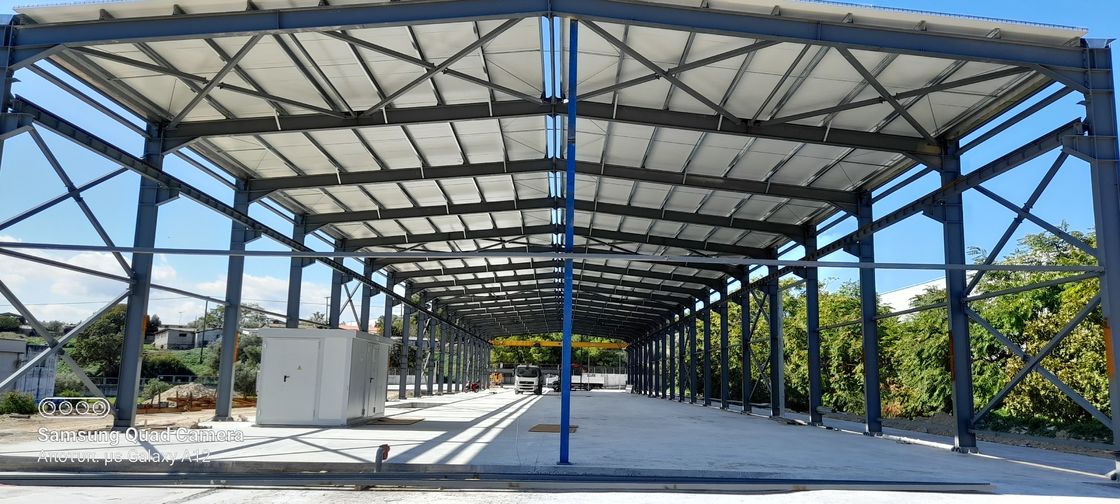

Low Cost And Easy Installing Prefabricated Steel Structure Shed Storage Warehouse
Design ability advantage:
By using the AutoCAD,PKPM,MTS,3D3S,Tarch,Revit,Tekla structure,(Xsteel) and other software,we can design complicated industrial workplant,logistic storage,fowls house,shops and market,star hotel,office building,dormitory for school,stadium,high speed railway station,air port and so on.
| Item |
Materials |
Remark |
| Main Steel Structure Frame |
H section column and beam |
material Q355b steel, paints or hot dip galvanize |
| wind resistant column |
material Q355b steel,paints or hot dip galvanize |
| Roof purlin |
Q235B C/Z section galvanized steel (100-275g) |
| Wall purlin |
Q235B C/Z section galvanized steel (100-275g) |
| Supporting system |
Tie beam |
Q235 round steel pipe |
| knee brace |
angle steel L50*4,Q235
|
| roof horizontal bracing |
φ20,Q235b steel bar, paints or hot dip galvanize |
| column vertical bracing |
φ20,Q235b steel bar, paints or hot dip galvanize |
| purline brace |
Φ12 round bar Q235b |
| knee brace |
angle steel, L50*4,Q235b |
| casing pipe |
φ32*2.0,Q235 steel pipe |
| gable angle steel |
M24 Q235b |
| Roof and wall |
1 Wall and roof panel |
corrugated steel sheet / insulated sandwich panel |
Notice for Quick Responce of Design & Quotation:
Our excellent design team will design the steel structure building for you. We can make the design and quotation directly if you give the following information.
Location (where will be built) _____country/area;
Size: Length× width× height= ×_____×(mm);
Wind load / speed (max.) _____KN/m2;
Snow load / thickness (max.) _____KN/m2;
Thermal insulation?If yes, EPS, fiberglass wool, rockwool, PU for choice. If not, the corrugated steel sheet will be OK.
Door quantity & size _____units, (width)mm×(height)mm
Window quantity & size _____units, (width)mm×(height)mm
Crane needed or not. If yes, _____units Crane; Max. Lifting weight ____tons; Max. Lifting height _____m;
Shipment:
Normal the goods will be shipped by use 40’ open top container and 40’ HQ container.
If 40’HQ, it needs a steel pallet to pack the goods, then the whole pallet cargo will be pushed into container together, when you unload the goods, you wold pull the whole pallet out of the container. In this case, the ocean freight will be cheaper, but will increase the cost of pallet.
Regarding the open top containers, all the goods will be loaded one by one. In this case, the steel pallet cost could be saved but the sea freight of 40’OT is much higher.
Both plan is acceptable.You can chose your prefer.
Services offered by KXD STEEL STRUCURE:
| Pre-Sales Service |
1. Consultant service (Answering AND Confirming client's questions)
2. Design plan(drawing)
3. Assisting client to choose suitable construction plan
4. Price calculation
5. Business&technology discussion
|
| Sale Service |
1. Submission of support reaction data for foundation
2. Submission of construction drawing
3. Providing requirements for embedding
4. Construction Manual
5. Fabrication & Packing
6. Statistical table of material
7. Delivery on time
8. Other requirements by Clients
|
| After-Sale Service |
1. Service of installation Supervision
2. Instruction for using after installation completed
|
