Product Description:
What is prefabricated steel structure building?
Steel structure building is built over three members connected to each other by bolts and screws: Primary members (columns, beams) Steel columns will be H section steel, square tube steel according to different type of buildings. Steel beams are usually H section steel. Secondary members (C or Z purlins, bracing...) Roof and wall sheeting or sandwich panel (EPS, fiberglass wool, PU sandwich panel) Other building components (Rolling doors, aluminium windows, etc.) The entire primary members and secondary members are designed and fully fabricated including cut-to-length, punching, drilling, welding and performing in the factory before shipping to the site for erection. At the site, all components are assembled and jointed via nut & bolt connections; thereby reducing the costs and assembly times. These buildings can be provided with different structural and non-structural additions such as ventilators, doors & windows, trusses, mezzanine floors, canopies, crane, insulation…, based on the customer's requirements.
Technical Parameters:
| Specifications |
| 1)Size(m): |
Width * Length * Height; |
| 2)Type: |
Single slope, double slope, Multi-slope; |
| Single span, double-span, Multi-span; |
| Single floor, double-floor, Multi-floor; |
| 3) Base: |
steel foundation bolts |
| 4) Steel frame: |
Material Q345(S355JR)(Gr50)or Q235(S235JR) steel; |
| Straight cross-section or Variable cross-section; |
| steel welded H section painted or galvanized. |
| 5) Bracing: |
X-type or V-type or other type bracing made from angle, round bar, etc ; |
| 6) Wall & Roof Purlin: |
C section channel or Z section channel ,Size from C80~C300; Z100~Z300; |
| 7) Roof & wall cladding |
Single color corrugated steel sheet 0.326~0.7mm thickness; |
| Sandwich panel with EPS, ROCK WOOL,GLASS WOOL, PU etc insulation, thickness around 50mm 75mm 100mm 120mm 150mm 200mm; |
| recommend coating PVDF SMP HDP PE |
| 8)Window: |
UPVC/PVC or Aluminum Alloy window frame with glass. |
| 9)Door: |
Exterior door:Sliding or Roller shutter door. |
| Internal door:50mm thickness EPS sandwich panel with an aluminum alloy door frame |
| 10) Gutter material: |
Color steel sheet or galvanized steel or stainless steel; |
| 11)Rainspout: |
PVC pipe |
| 12)Connection |
high strength bolts ,intensive bolt,self-drilling screws. |
| 13)Accessories: |
Skylight panel, Ventilation, Fasteners etc |
| 14)Surface process: |
Shot blasting Sa2.5;Two layers of Anti-rust Painting or galvanized |
| 15) Packing: |
Main steel frame without packing load in 40' GP, roof and wall panel load in 40' HQ |
Applications:

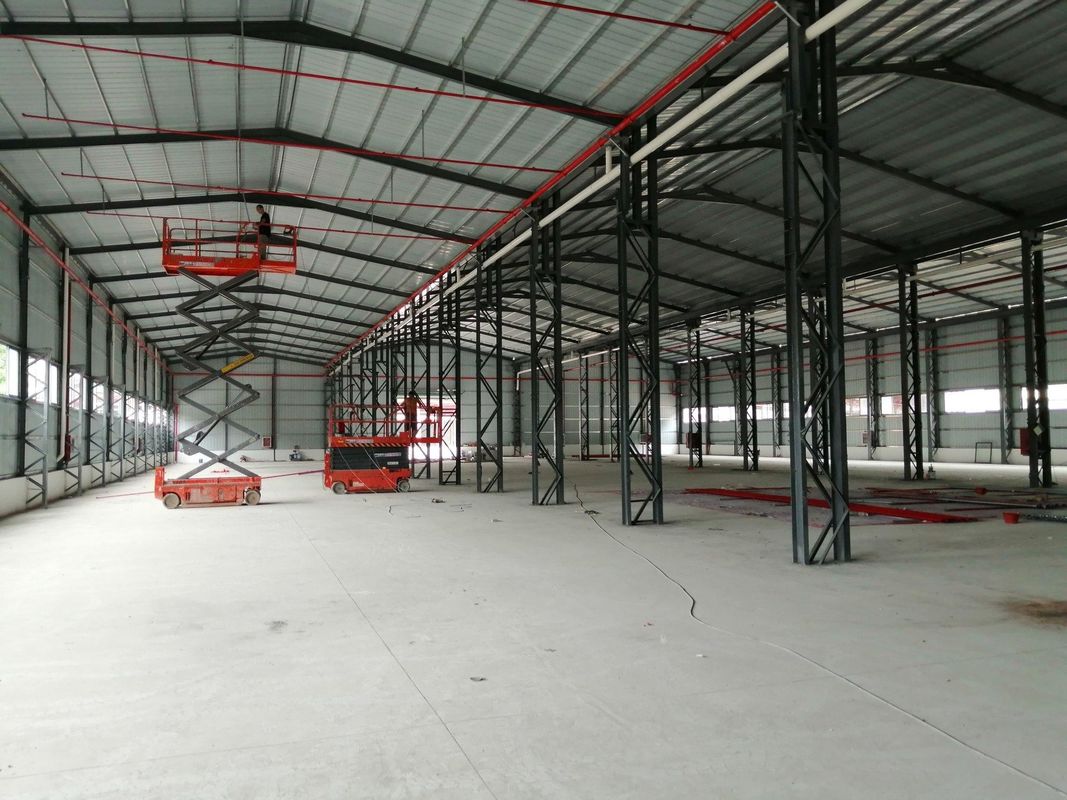

KXD Steel Structure's steel structure warehouse is an ideal solution for various occasions and scenarios. With its excellent quality, durability, and affordability, it has become a popular choice for many industries.
Product Application Occasions
The steel structure warehouse is suitable for various occasions, including:
- Industrial parks
- Logistics centers
- Manufacturing plants
- Commercial buildings
- Storage facilities
Support and Services:
Our Steel Structure Warehouse product comes with comprehensive technical support and services to ensure that our customers have a hassle-free experience. Our team of experts is available to assist with any questions or concerns that may arise during the installation or use of our product. We provide detailed product documentation and installation instructions for ease of use.
Packing and Shipping:
Product Packaging:
The steel structure warehouse will be packaged in a wooden crate or a pallets, depending on the size and shape of the structure. All components will be securely fastened to prevent any damage during transportation.
Shipping:
The steel structure warehouse will be shipped via container, depending on the location of the customer and the size of the structure. Shipping costs will be calculated based on the distance and weight of the shipment.
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to Qingdao port. And we have total 3 workshops from steel structure to wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution according to your requirements before placing order. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
