Highlight:
Stainless Steel Axial Flow Exhaust Fan
, Axial Flow Exhaust Fan Piggery Equipment
, Livestock Farm Axial Flow Exhaust Fan
Name: |
Axial Flow Exhaust Fan |
Dry/Wet Feeder: |
Stainless Steel For Base Pan,PVC Barrel |
Free Feeder: |
5-level Adjustable |
Plastic Floor: |
600x400mm, 600x500mm,600x600mm Or Customized |
Cool Pad: |
1800x600x150mm Or Customized |
White Curtain: |
PE, 330g/m2 (pre Made) |
Saddle: |
ABS Alloy Material |
Heat System: |
Includes Heat Lamp, Insulation Cover, Heat Pad Etc. |
Other Accessories: |
Medium Board, Paddles, Stainless Steel Clamp, Laneway Pens Etc. Bracket, |
Application: |
For Mating Shed, Farrowing Shed, Weaner Shed, Grower Shed |
Drinker Bowls: |
Stainless Steel 304 |
Feeder Size: |
900*550*470 Mm/Customizable |
Stainless Steel Axial Flow Exhaust Fan For Livestock Farms
Environment Control System
KXD Fans
1.Fiberglass shell, integral molding, fluid simulation design, low wind resistance, high energy efficiency, and corrosion resistance;
2.Cast aluminum fan blades, high strength and corrosion resistance; Aerodynamic design, large air volume, high efficiency, smooth and reliable operation;
3.The fan specific motor has a protection level of IP55 and an insulation level of F, which can meet different working conditions;
4.High strength aluminum alloy bracket, good corrosion resistance, and stable operation of the entire machine;
5.Cast iron material pulley, high strength, wear-resistant, and long service life;
Spring loaded belt tensioning design, simple structure, improves transmission efficiency;
6.Imported brand bearings with oil injection holes for easy maintenance and upkeep;
T-shaped louvers with wing shaped design louvers effectively reduce wind resistance and improve ventilation and airtightness.

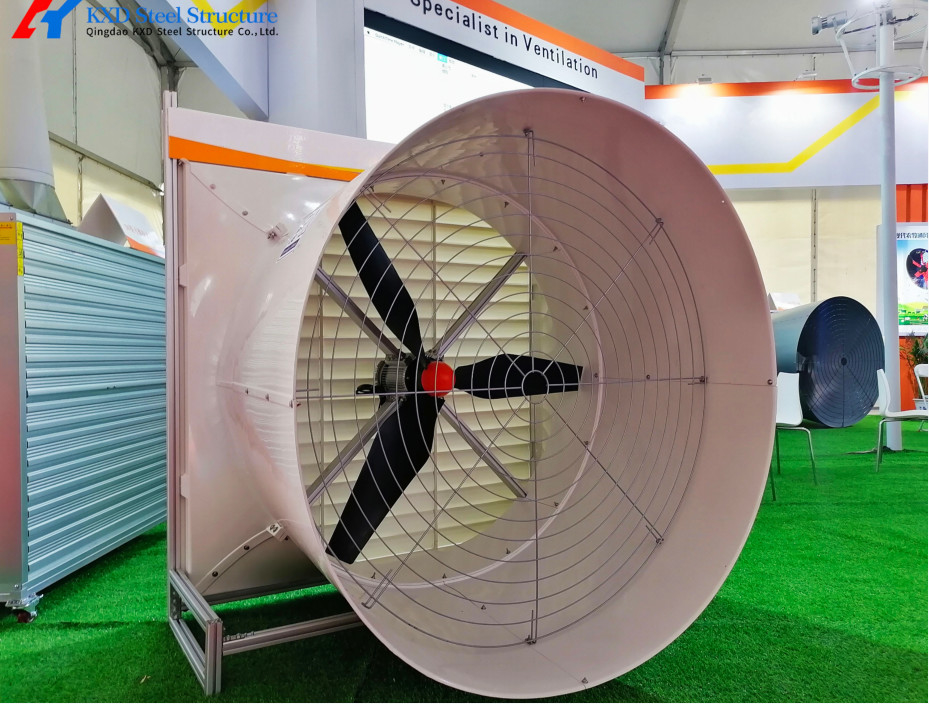

Fiber Glass Cone Fan
|
Type
|
Phase
|
Rated Voltage
|
Power
|
Size
width*height
|
CFM
m³/h
|
Shell & Cone
|
|
Cast Aluminium Fan Blade Fiberglass Fan
|
18 inch
|
3
|
380V
|
250V
|
580*580
|
6268
|
Hand lay-up
|
| 24 inch |
3
|
380V
|
250V
|
750*750
|
12473
|
Mould pressing & hand lay-up
|
| 36 inch |
3
|
380V
|
550V
|
1090*1090
|
22614
|
Mould pressing & for shell & cone
|
| 51 inch |
3
|
380V
|
1100V
|
1430*1430
|
52439
|
Mould pressing & for shell & cone
|
Roof Fans
Type: TFC
Name: Roof air inlet
Material: PS
Spec: 700*318*200Package:
main part730*500*350mm 5pcs/ctn
base part670*540*540mm10pcs/ctn
Roof Double Open Inlet
|
Outline Spec.
|
750*560*160mm
|
800*560*160mm
|
1210*560*160mm
|
|
Installation Spec.
|
670*500mm
|
740*500mm
|
1150*500mm
|
Cooling Pad System
About Us
Qingdao KXD Steel Structure Co.,Ltd, established in 2002, is a professional manufacturer specializing in steel structure poultry&piggery houses with automatic equipment. With over two decades of development, our company has been committed to providing high quality agricultural building solutions for the clients all around the world.
