Highlight:

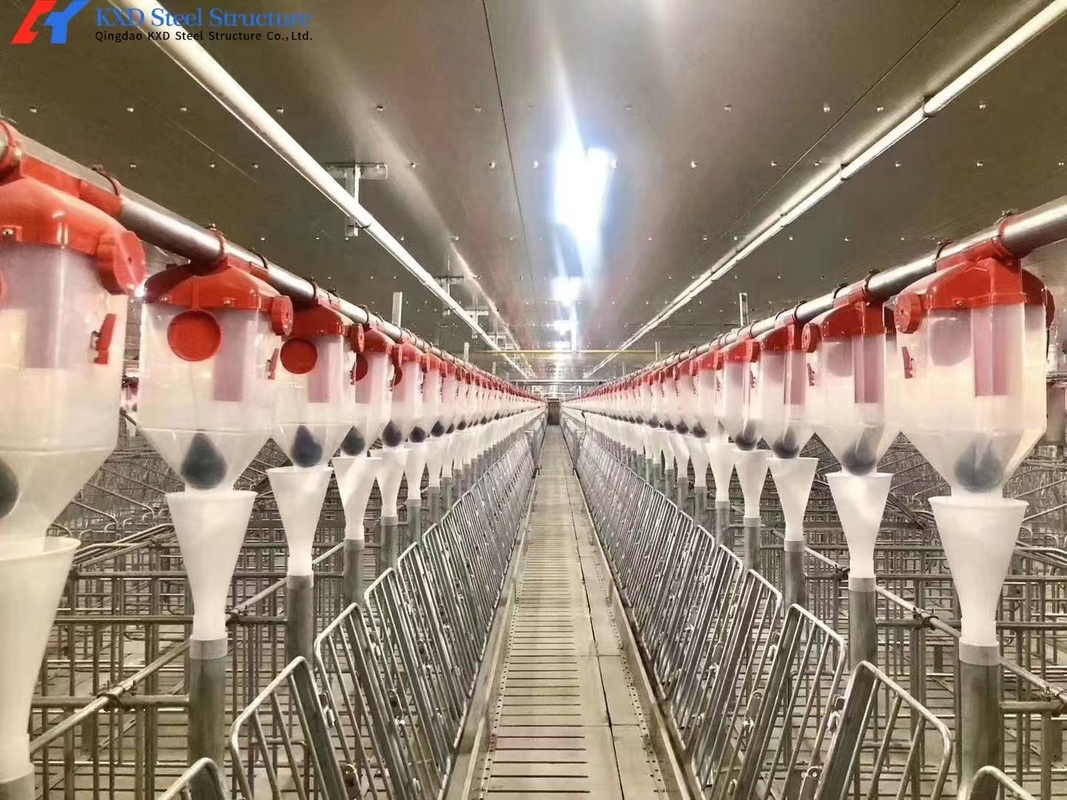

Piggery Equipment Pig Farming Crate
, Pig Farming Crate System
Name: |
Piggery Equipment |
Application: |
For Mating Shed, Farrowing Shed, Weaner Shed, Grower Shed |
Drinker Bowls: |
Stainless Steel 304 |
Plastic Floor: |
600x400mm, 600x500mm,600x600mm Or Customized |
Cool Pad: |
1800x600x150mm Or Customized |
White Curtain: |
PE, 330g/m2 (pre Made) |
Dry/Wet Feeder: |
Stainless Steel For Base Pan,PVC Barrel |
Saddle: |
ABS Alloy Material |
Heat System: |
Includes Heat Lamp, Insulation Cover, Heat Pad Etc. |
Other Accessories: |
Medium Board, Paddles, Stainless Steel Clamp, Laneway Pens Etc. Bracket, |
Feeder Size: |
900*550*470 Mm/Customizable |
Free Feeder: |
5-level Adjustable |
Crate System For Piggery House
Steel Structure Piggery Shed
KXD is a project and turnkey solution provider for pig shed farm. We have spent time researching and developing farrowing pens and equipment that will allow sows and piglets to spend this time together comfortably and safely, increasing your production numbers and profits.
Piggery Crate
Fence:2400*700*1100mm, hot-dip galvanized, zinc coating280μm, double doors with limit device for back and tail and ant extrusion rod, fix with stainless steel bolt.
φ20mm steel rod for fence, φ16mm steel rod for front/rear doors.
Feed trough:20L stainless steel 304, reversible cleaning.
Ad Libitum Feeder:latch lock design, 5-level regulation free feeding, 304 stainless steel with PP square hopper.
Drinker:1/2 male screw, hot galvanized water pipe to fix in the front with 304 stainless steel drinker.
Piggery Fencing
With PVC fencing, thickness of edge connector 2mm, Hot-dip galvanized with zinc coating280μm;
Pillar serging:40*40*2.5mm square tube with anchor plate 200*200*6mm steel plate;
PVC board:H=750mm, herringbone steel;
Top bar:φ32*2.5mm rod with specialized round to square fasteners;Entirety hot galvanized with zinc coating280um.
Semon Collection Crate
Front crate: up and down frame 50*30 rectangle tube, vertical 1 inch steel tube thickness 2. 5mm;
Side crate: up and down frame 50*30 rectangle tube, vertical 1 inch steel tube thickness 2.5mm;
Back door:up and down frame 50*30 rectangle tube, vertical 1 inch steel tube thickness 2.5mm;
Crate door: up and down frame 50*30 rectangle tube, vertical l inch steel tube thickness 2.5mm;
Stand column:40*40*2.5mm square tube with anchor plate 200*200*6mm steel plate;
Entirty hot galvanized with zinc coating280um.
Other Accessories
KXD knows that it takes a lot to feed your pigs. That’s why we offer top of the line products to help you store your feed and easily transport it into your barns.
On-site Installation
Package & Unloading Containers
