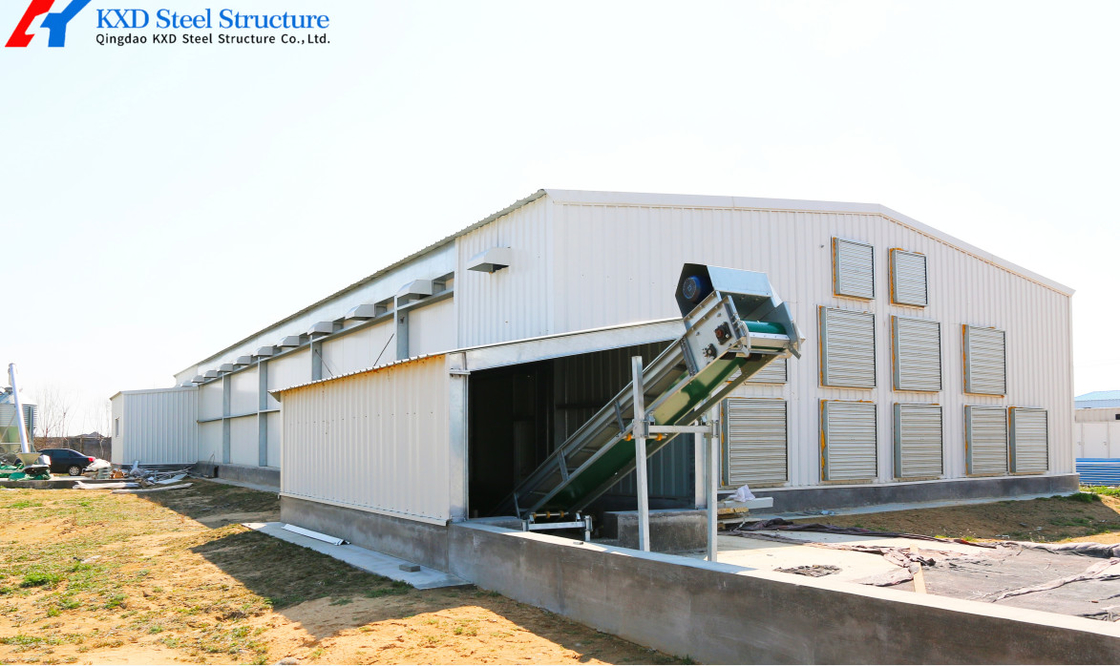

Prefab Steel Structure Poultry Farm Shed with Automated Feeding System

Name: Prefab Steel Structure Poultry Farm Shed with Automated Feeding System
Brand: Qingdao KXD Steel Structure Co., Ltd
SKU: KXD-EQUIPMENT
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: KXD

Certification: CE, ISO 9001, ISO140001, ISO45001

Model Number: KXD-EQUIPMENT

Payment & Shipping Terms

Minimum Order Quantity: 200 square meters

Price: 30-80 USD per sqm

Packaging Details: Steel Pallet Or In Bulk

Delivery Time: 35-55 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 15000 tons Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                prefab steel poultry house, prefab steel structure poultry house, q235 steel poultry house


Material:	Q345 Q235 Steel Structure	Roof:	Sandwich Panel, Galvanized Steel Sheet
Wall:	Sandwich Panel	Door:	Steel Insulation Door
Window:	Aluminum	Connections:	Bolts Connection
Surface Coat:	Galvanized	Beam:	H Section Steel
Column:	H Section Steel	Color:	Customized
Dimensions:	Customized	Design:	Customized
Standard:	ASTM, DIN, GB, JIS	After-sale Service:	Onsite Installation, Onsite Inspection, Free Spare Parts
Certification:	ISO9001&CE Certification	Application:	Chicken Shed, Piggery House, Cattle Shed Etc.
Name:	Steel Poultry House	Customization:	Available
Shot Blasting Level:	SA 2.5	Main Structure:	Steel Structure Frame
Tie Beam:	Round Pipe Or Square Tube	Sample Time:	7 Days If Standard Parts We Have
Color:	Custom Approval	Third Party Test:	SGS, BV, ITS
Foundation Type:	Concrete/Steel	Thickness:	5-28mm
Fireresistance:	Fire-resistant Materials Used	Quick Built:	Easy Install
Web Width:	7-28mm	Service Life:	20-50 Years
Connection Type:	Bolted, Welded

Material:	Q345 Q235 Steel Structure
Roof:	Sandwich Panel, Galvanized Steel Sheet
Wall:	Sandwich Panel
Door:	Steel Insulation Door
Window:	Aluminum
Connections:	Bolts Connection
Surface Coat:	Galvanized
Beam:	H Section Steel
Column:	H Section Steel
Color:	Customized
Dimensions:	Customized
Design:	Customized
Standard:	ASTM, DIN, GB, JIS
After-sale Service:	Onsite Installation, Onsite Inspection, Free Spare Parts
Certification:	ISO9001&CE Certification
Application:	Chicken Shed, Piggery House, Cattle Shed Etc.
Name:	Steel Poultry House
Customization:	Available
Shot Blasting Level:	SA 2.5
Main Structure:	Steel Structure Frame
Tie Beam:	Round Pipe Or Square Tube
Sample Time:	7 Days If Standard Parts We Have
Color:	Custom Approval
Third Party Test:	SGS, BV, ITS
Foundation Type:	Concrete/Steel
Thickness:	5-28mm
Fireresistance:	Fire-resistant Materials Used
Quick Built:	Easy Install
Web Width:	7-28mm
Service Life:	20-50 Years
Connection Type:	Bolted, Welded

Product Description

Prefab Steel Structure Poultry Farm Shed with Automated Feeding System

Product Specifications

Attribute	Value
Material	Q345 Q235 Steel Structure
Roof	Sandwich Panel, Galvanized Steel Sheet
Wall	Sandwich Panel
Door	Steel Insulation Door
Window	Aluminum
Connections	Bolts Connection
Surface Coat	Galvanized
Beam	H Section Steel
Column	H Section Steel
Color	Customized
Dimensions	Customized
Design	Customized
Standard	ASTM, DIN, GB, JIS
After-sale Service	Onsite Installation, Onsite Inspection, Free spare parts
Certification	ISO9001&CE Certification
Application	Chicken Shed, Piggery House, Cattle Shed etc.

Poultry House Systems Overview

System	Description
Main Feeding System	Delivers feed from the silo to the hopper with automatic motor control via feed sensor
Poultry Feed Pan System	Automatically delivers feed through motor under feed sensor control for continuous feeding
Nipple Drinking System	Provides fresh, clean water with 360-degree trigger capability for easy poultry access
Ventilation System	Controls climate conditions including fresh air, humidity and temperature (includes fans, cooling pads, air inlet windows)
Environmental Control System	Automated system imported from Israel that optimizes growth environment based on local climate
Spraying System	Provides cooling, humidification, dust control and disinfection (reduces temperature by 3-8°C in minutes)

Silo Specifications

Core Components	Cone Plate \| Galvanized coating (275g/㎡)
Warranty	1 Year
Weight	628 KG
Place of Origin	Shandong, China
Brand Name	KXD
Material	Galvanized Corrugated Sheets
Life Expectancy	25-40 Years
Application	Poultry Farm Used Feed Storage
Package Size	260×110×150 cm

Feeding System Components

Vice driver
The feed pan
Feed tube
Augor
Side feed box
The lifting device
Porching prevention device

Drinking System Advantages

Quick fitting: Convenient assembly and disassembly with good sealing. Extended design prevents water leakage between units.

Drinking nipple: Valve-type nipples with double seal design for reliability. Made of anti-corrosive materials with stainless steel internal components, allowing 360-degree rotation.

Drinker Nipple Specifications

Condition	New
Feature	360 degree outer, Long Service Time, Easy cleaning, High performance
Warranty	1 Year
Color	Custom
Place of Origin	Shandong, China
Brand Name	KXD
Size	3.4cm×1.0cm
Weight	0.3 KG
Material	304 Stainless Steel+PP
Application	Poultry Drinking
Package	14×13×4.5cm/one pack (28 nipples)

Packaging & Shipping

Product Packaging:

All components packed in bundles secured with steel straps
Main frame packed in container or shipped as single package
Wall and roof panels packed separately to prevent damage
All necessary fittings and accessories included

Shipping:

Shipped by sea
Delivery time varies by destination
Tracking information provided upon shipment

Our Commitment

We provide comprehensive support and are always available to answer questions or address concerns. Our team is dedicated to ensuring complete customer satisfaction with technical support and services for your Steel Structure Poultry House.
