Good Epoxy Painting Metal Construction Building Prefabricated Steel Frame Warehouse

Product Details

Place of Origin: China Qingdao

Brand Name: KXD

Certification: ISO9001:2008

Model Number: KXD-SW16

Payment & Shipping Terms

Minimum Order Quantity: 200 square meters

Price: USD 40-85 Per Square meter

Packaging Details: steel pallet & wooden box or in bulk

Delivery Time: 35-55 days

Payment Terms: T/T, L/C

Supply Ability: 5000-9000 tons Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Metal Construction Building Prefab, Epoxy Painting Metal Construction Building, Prefabricated Steel Construction Warehouse


Profile:	Hot Rolled H Steel / Weld H Steel	Material:	Q355b, Q235b
Technician:	Free Technical Support	Design:	Custom Exactly As The Demands
Drawing:	3D Model And Installing Drawing Available	Production:	Finished For Direct Install Support
Coating:	Alkyd Painting, Epoxy Painting, Hot Dip Galvanized	Insulation:	EPS, Glasswool, Rockwool, PU On Option
Standard:	Different Standards On Option As Demands	Install:	Online Guide Support & On-site Install
Service Life:	30-50 Years	Visit:	Workshop Visit And Check Available

Profile:	Hot Rolled H Steel / Weld H Steel
Material:	Q355b, Q235b
Technician:	Free Technical Support
Design:	Custom Exactly As The Demands
Drawing:	3D Model And Installing Drawing Available
Production:	Finished For Direct Install Support
Coating:	Alkyd Painting, Epoxy Painting, Hot Dip Galvanized
Insulation:	EPS, Glasswool, Rockwool, PU On Option
Standard:	Different Standards On Option As Demands
Install:	Online Guide Support & On-site Install
Service Life:	30-50 Years
Visit:	Workshop Visit And Check Available

Product Description

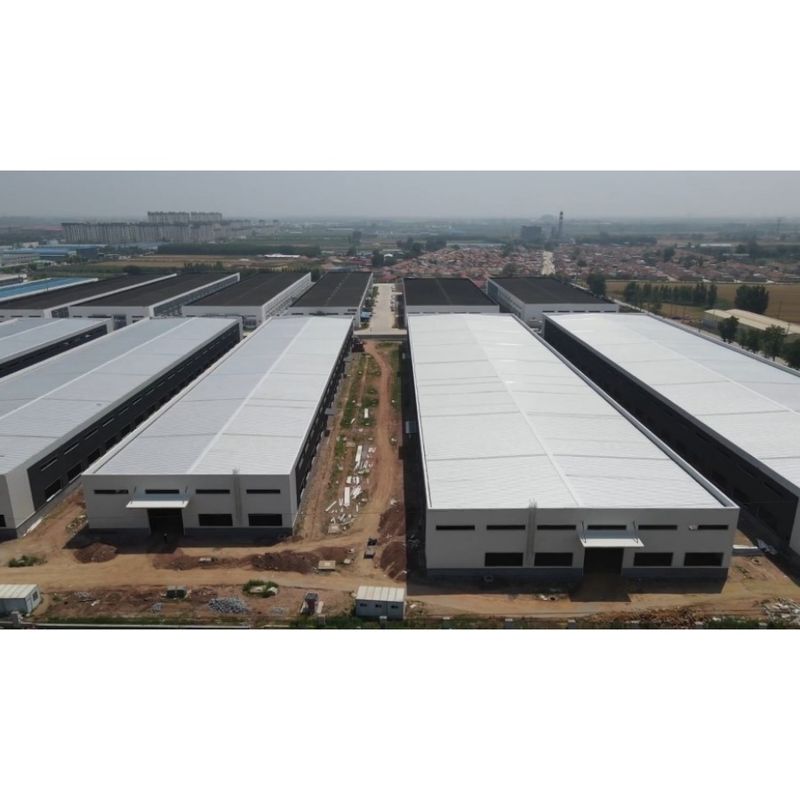

Good Epoxy Painting Steel Structure Frame Prefabricated Warehouse Workshop Good Epoxy Painting Metal Construction Building Prefabricated Steel Frame Warehouse 0

Good Epoxy Painting Metal Construction Building Prefabricated Steel Frame Warehouse 2

Good Epoxy Painting Metal Construction Building Prefabricated Steel Frame Warehouse 3

Main steel Structure
beam column	Q235b, Q355b
Secondary steel
Tie Tube	Q235b
Bracing	Q235b
Purlin	(C,Z purlin)
Maintenance system
Roof Cladding	Corrugated steel sheet EPS /Rockwool /Fiber glass wool / PU sandwich panel
Wall Cladding	As above
Connecting Bolts
High strength bolt	For main steel structure
Normal bolt	For secondary steel structure
Screws and other installing accessories	For cladding and flashing. We will offer the full installing accessories to support.

When it comes to commercial style buildings, steel is the reliable way to go. In Fact, there are several studies out that show prefab steel is the better solution. Steel is the efficient, strong and sturdy solution for commercial buildings. They save time on maintenance and they're guaranteed to last. We offer clever designs, practical solutions, and aesthetically appealing metal commercial buildings at an affordable price.

When we build a steel warehouse or steel workshop, extra office is also no problem to add. The office part can be made along the main building. It also can be inside of the main building, also can build into as mezzanine as two floors or three floors etc.

Installation: Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.

Ability	1. Support to supply all kinds of steel structures, steel building, metal building, modular house, steel frames for houses, steel beams, other riveting and welding structure components
	2. Support to deign and made new construction projects according to customers’ dimensions or drawings
Details	1. Size (Length* Width* Eave height, roof slope) : MOQ as 200sqm
	2. Type: Single slope, Double slope, Multi slope Single span, Double span, Multi span Single floor, Double floors
	3. Base: Cement and Steel foundation bolts
	4. Column & Beam: Q345(S355JR) or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section!
	5. Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
	6. C or Z purlin: Size from C120~C320, Z100~Z200
	7. Roof and wall panel: Single steel sheet: thickness 0.326~0.8mm Sandwich panel: thickness 50mm~100mm
	8. Accessories: Semi-transparent skylight belts, Ventilators, down pipe, galvanized gutter, etc
	9. Surface treatment of steel: 2 layer epoxy zinc rich primer and 2 layer antirust paint
	10. Normally by 40'OT/ 40'HQ

We offer One stop service: Design, manufacture, logistics, installation service for you. More details or detailed design drawing for your project, feel free to contact us. Our engineer team will make for you.

If interest, welcome to visit us and check our production lines.
