Prefabricated Steel Structure Broiler Poultry House with Feeding System

It is transferred to the feeders by delivery system when feed fill up base hopper. The base hopper with qualities of large capacity, scientific design, firm structure, low cost and long life span.

Feed pan is the core of feeding system. The pan feeding system for broilers is solid and reliable through the application of high quality materials and components, providing easy access for birds from day one to flow out.

Nipple drinking system provides fresh and clean water for birds, which is very vital to let the birds have a good growing performance. Meanwhile, nipple drinking system can make the poultry house environment better. The nipple drinking system has become the necessary equipment for standard poultry feeding.

Based on the Windows 2000 of the automatic environmental monitoring network system of poultry house. You can easily achieve centralized monitoring of environmental conditions within a certain range.

Fuel coal heater: The main engine is mainly coal-fired, equipped with high pressure fan, and provides wind and water heating. Water heating system adopts boiler special plate jacket design, wind heating adopts seamless steel pipe unique design, letting the waste heat full recovery, to achieve the purpose of energy saving, convenient cleaning, safe and reliable operation.

Fuel natural gas heater:

• Energy efficient and green
• Intelligent operation and automatic thermostat
• Fast temperature rise and efficient operation
• With overheating protection device

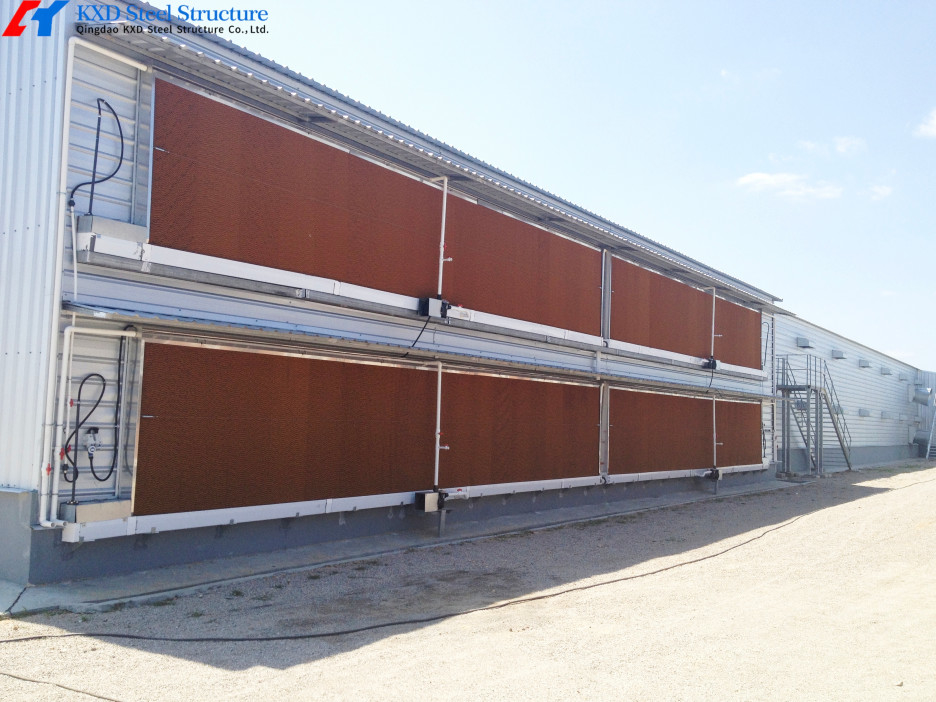

Cooling Pad is a special paper honeycomb structure material, its working principle is "water evaporation absorb heat" this natural physical phenomenon. That is water in the role of gravity, from the top downward flow, in the cooling pad corrugated per surface to form a water film, when the flow of air through the cooling pad, the water film in the water will evaporate to absorb the heat of the air to take away a lot of latent heat, so that after the wet curtain the air temperature is reduced. This will lower the temperature of the air passing through the cooling pad, thus achieving the purpose of cooling.

Cooling pad filter uses with cooling pad, filter water impurities, to prevent water and pipe blockage. The filter has the characteristic of advanced structure, small resistance, convenient pollution discharge.

All of our KXD poultry sheds are ISO 9001-2015 certified. Any third-party inspection will be accepted, such as SGS, BV, TUV etc. We also welcome OEM and ODM orders. So far, we have exported to more than 1,500 projects over 130 countries and regions around the world and accumulated rich experience in the design, fabrication and supply of steel buildings, as well as the erection of steel buildings, architectural materials, electrical systems. You can talk to our customer service center about your sourcing requirements.
