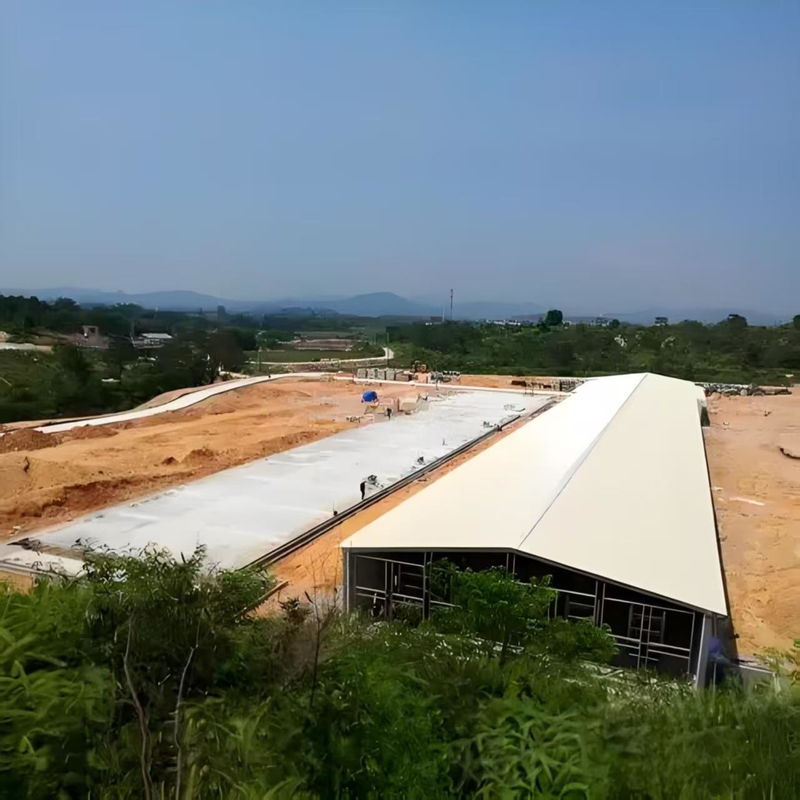

Steel Frame Poultry Shed for 10000 Chickens - Q235/Q355 H Section Structure

• Cell size: Length 3000mm, width 1820mm, height 450 mm. Raising areas is 5.46㎡
• The maximum raising density is 50kg/㎡. 110 birds can be put in each tier
• For 3 tiers, 330 birds can be put per cage unit. For 4 tiers, 440 birds per cage unit
• Distance between two adjacent cage frames should be more than 1.2m
• Each tier has two watering lines and one feeding line with 2 feeding pans and 12 nipples for drinking
• Material of main equipment is galvanized steel (275g/㎡ minimum, GB/T2518-2008 standard)
• 4 tiers Battery Cage offers 2 to 4 times higher capacity compared to floor system

• Hot-dip galvanization technology ensures 15-20 years service life
• Long service life, high stability, and low equipment cost
• Semi-Automatic drinking and manure cleaning system saves energy and improves efficiency
• Well ventilated, comfortable environment with easy operation
• Low forage-to-egg ratio reduces production costs
• Ideal for manual or semi-automatic open chicken houses (up to 20k layers)
• Saves operator time and labor costs while improving raising performance

The advanced livestock and poultry environment controller adopts intelligent control technology combining temperature, humidity, static pressure, ventilation, and lighting parameters with poultry feeding process parameters. Features include:

• Stable temperature control with adequate and reasonable ventilation
• Automatic timing lighting system
• Large-scale touch screen interface displaying all equipment status
• Easy operation with precise and reliable performance

Qingdao KXD Steel Structure Co., Ltd. has many years of experience in EPC design, production equipment, and services for piggery and poultry farms, offering comprehensive breeding solutions.

• High Grade Production Quality: Strict quality control system ensuring high-quality projects
• Mature Technological Strength: Continuous R&D of new products, technologies and processes
• Comprehensive Product System: Complete range of high-quality poultry farming equipment
• Exquisite Service Level: Detailed pre-sales consulting, installation, and after-sales services
• Broad Business Scope: Global sales and service network with worldwide recognition
