Open Wall Designed Clear Span High Rise Prefabricated Steel Hall Warehouse Shed

Name: Open Wall Designed Clear Span High Rise Prefabricated Steel Hall Warehouse Shed
Brand: Qingdao KXD Steel Structure Co., Ltd
SKU: S-0076
Price: 65.00 USD
Availability: InStock

Product Details

Place of Origin: Qingdao, China

Brand Name: KXD

Certification: CE, ISO, SGS

Model Number: S-0076

Payment & Shipping Terms

Minimum Order Quantity: 500 square meters

Price: US$ 50-80 per square meter

Packaging Details: bulk for steel panels, steel pallet for steel structure, wooden box for small installing accessories

Delivery Time: 30-40 working days

Payment Terms: L/C,T/T

Supply Ability: 3000 tons per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High rise prefabricated steel warehouse, High rise steel hall, Open wall steel hall


Installation:	Free Installing Drawing Details & Quick On-line Technical Guide	Prefabrication:	Off-site In Workshop & Ready For Direct Installation
Connection:	High Strength Bolt Connection	Visit:	Workshop Visit And Quality Check Acceptable
Turnkey Project:	Acceptable	Design:	Custom With Free Architectural Design
Dimensions:	Customers' Requirement	Door:	Sliding Door Or Rolling Up Door
Color:	Client's Request	Surface:	Hot-dip Galvanized / Painted
Frame:	Steel Structure	Lifetime:	Over 50 Years
Structure Type:	High Strength Steel Structure Frame	Third Party Test:	SGS, BV, ITS

Installation:	Free Installing Drawing Details & Quick On-line Technical Guide
Prefabrication:	Off-site In Workshop & Ready For Direct Installation
Connection:	High Strength Bolt Connection
Visit:	Workshop Visit And Quality Check Acceptable
Turnkey Project:	Acceptable
Design:	Custom With Free Architectural Design
Dimensions:	Customers' Requirement
Door:	Sliding Door Or Rolling Up Door
Color:	Client's Request
Surface:	Hot-dip Galvanized / Painted
Frame:	Steel Structure
Lifetime:	Over 50 Years
Structure Type:	High Strength Steel Structure Frame
Third Party Test:	SGS, BV, ITS

Product Description

Steel structure is a metallic structure in which members composed of structural steel are connected to each other to carry a load and provide sufficient rigidity. Due to the high strength steel grade, this kind of structure is reliable and need less raw material than other types of structures such as concrete structures and wood structures.

At the same time, it will use smaller foundation to reduce the concrete quantity to save the cost as its light steel structure material.

In modern buildings, steel structures are used in almost all types of structures for vast different fields.

Features of steel structure building

1,Steel structure has light weight;

2,Steel structure has good seismic and impact resistance;

3,Steel structure manufacturing is highly industrialized;

4,Steel structures can be assembled accurately and quickly;

5,The building can be recycled after disassemble;

6,Steel structure building construction period is short.

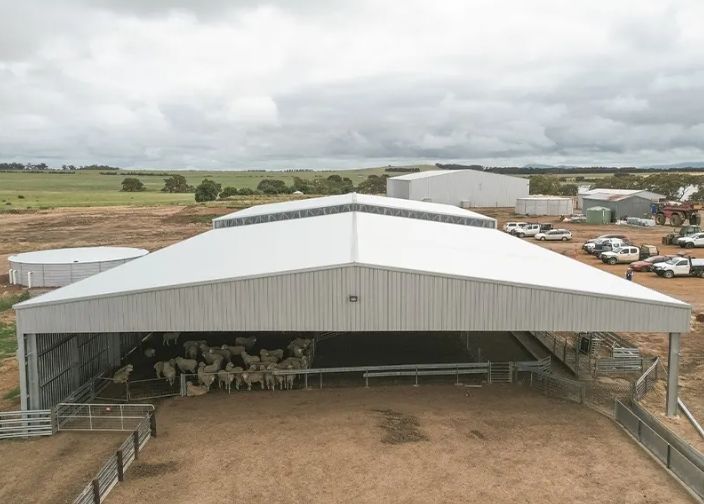

Open Wall Designed Clear Span High Rise Prefabricated Steel Hall Warehouse Shed 0

Open Wall Designed Clear Span High Rise Prefabricated Steel Hall Warehouse Shed 1

Open Wall Designed Clear Span High Rise Prefabricated Steel Hall Warehouse Shed 2

Details	Architectural design to meet the required loads.
	1. Size (Length* Width* Height; Roof slope) : MOQ as 500sqm
	2. Different Structure Types to meet different demands: Single slope, Double slope, Multi slope Single span, Double span, Multi span Mezzanine, Single floor, Multi floors
	3. Base: Cement and Steel foundation bolts
	4. Column & Beam: Q345(S355JR) or Q235(S235JR) steel, all bolts connection!
	5. Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
	6. C or Z purlin: Size from C120~C320, Z100~Z200
	7. Roof and wall panel: Single steel sheet: thickness 0.4~0.7mm Sandwich panel: thickness 50mm~150mm
	8. Accessories: Semi-transparent skylight belts, Ventilators, down pipe, galvanized gutter, etc
	9. Surface treatment of steel:Alkyd / Epoxy zinc / Hot dipping galvanized
	10. Loading: Normally by 40'OT/ 40'HQ

Open Wall Designed Clear Span High Rise Prefabricated Steel Hall Warehouse Shed 3

KXD is on-line for your any questions! Feel free to contact for your project! We will offer free architecture design for you.

Details to confirm to get a quick design and quotation:
Size	Length × Width × Length
Building Application	its exact usage or special requirements
Roof & Wall material	Steel sheet ? Insulated Panel ? Decorative Panel?
Crane	yes or not? Ton?
Wind Load	wind speed km/h or m/s or mph?
Snow Load	snow weight kg/m2 or Kn/m2?
Door & Window	Sizes? Quantity? Layout?
Inner Layout	Partition room?
More requirements	Parapet? Skylight? Ventilation? Canopy? Glass wall curtain?
